Armfield Instruction Manual
16

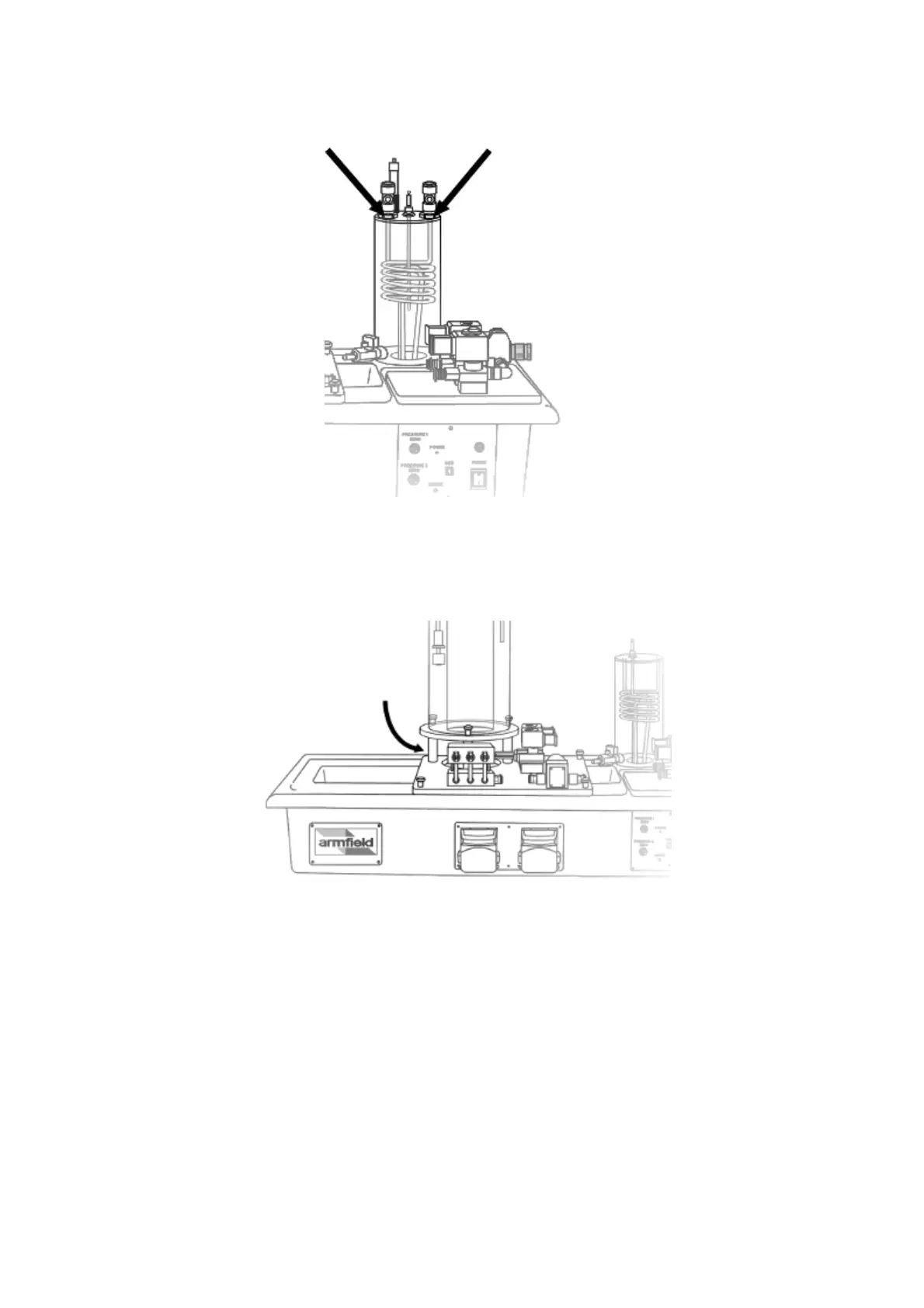

Temperature Sensors T2 & T3
Two type K thermocouples located at the inlet and the outlet of the heating/cooling
coil. These are used to measure the temperature of the fluid as it enters and leaves
the coil.
Temperature Sensor T4
A type K thermocouple is located near the back of the base plate to the left of the
large process vessel. This sensor is used during experiments utilising a holding tube,
to measure fluid temperature at the outlet of the holding tube. This sensor is also
used to measure temperature inside the reactor of the optional PCT41.
