4.1 Product Layout
Back View
1
2
3 5
6
7
8
9
10
11
12
4

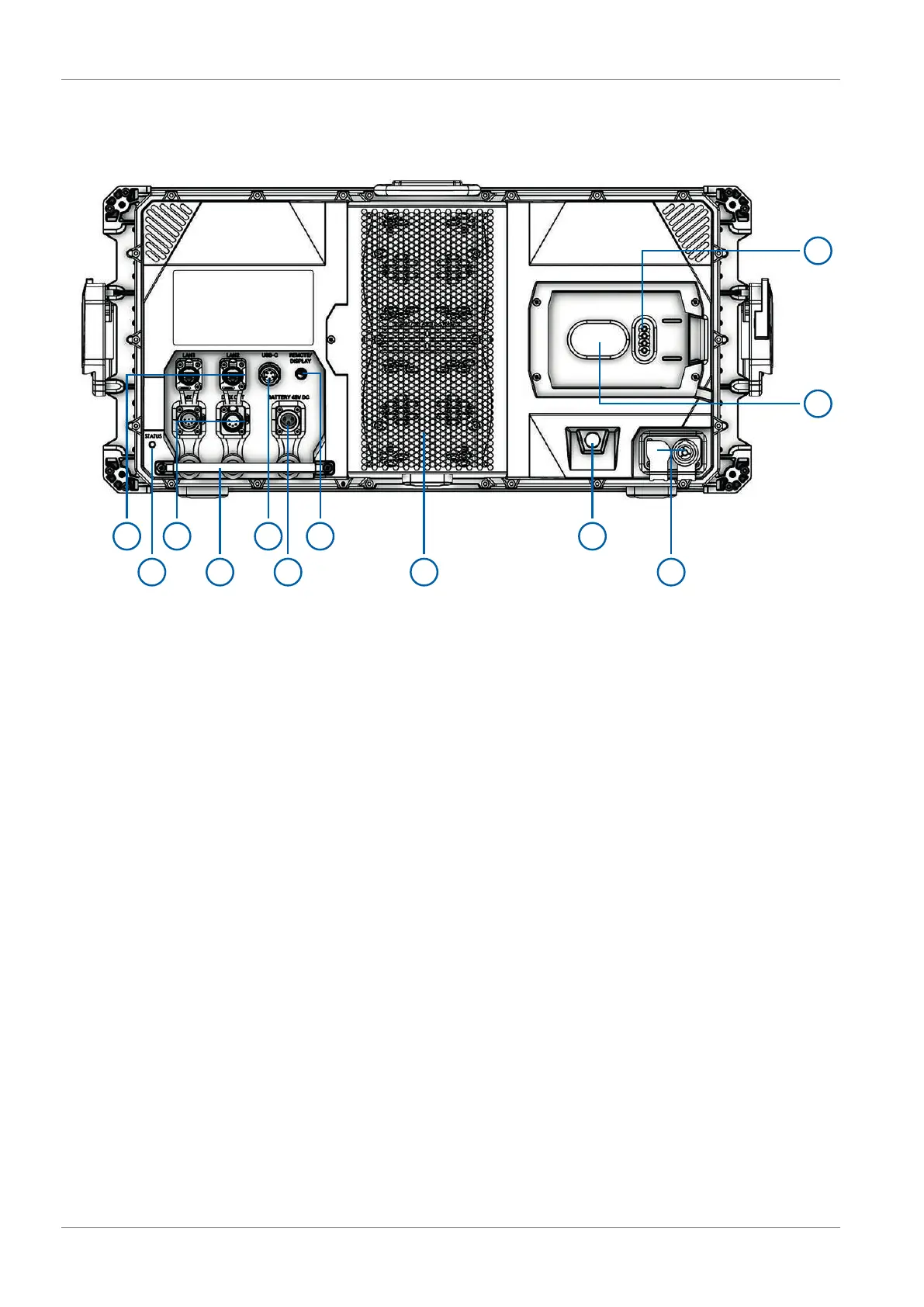

Illustration1: Back View
1 LAN 1 / 2 (with rubber caps) 7 Remote / display connector
2 Status LED 8 Fan cover
3 DMX in / thru / out (with rubber caps) 9 Climate membrane
4 Focus handle (not for rigging / safety wiring) 10 Mains in / thru (with rubber caps)
5 USB-C connector (with protective cap) 11 Control panel holding magnet
6 Battery in (with rubber cap) 12 Control panel connector pins
