Twin Quick Lock

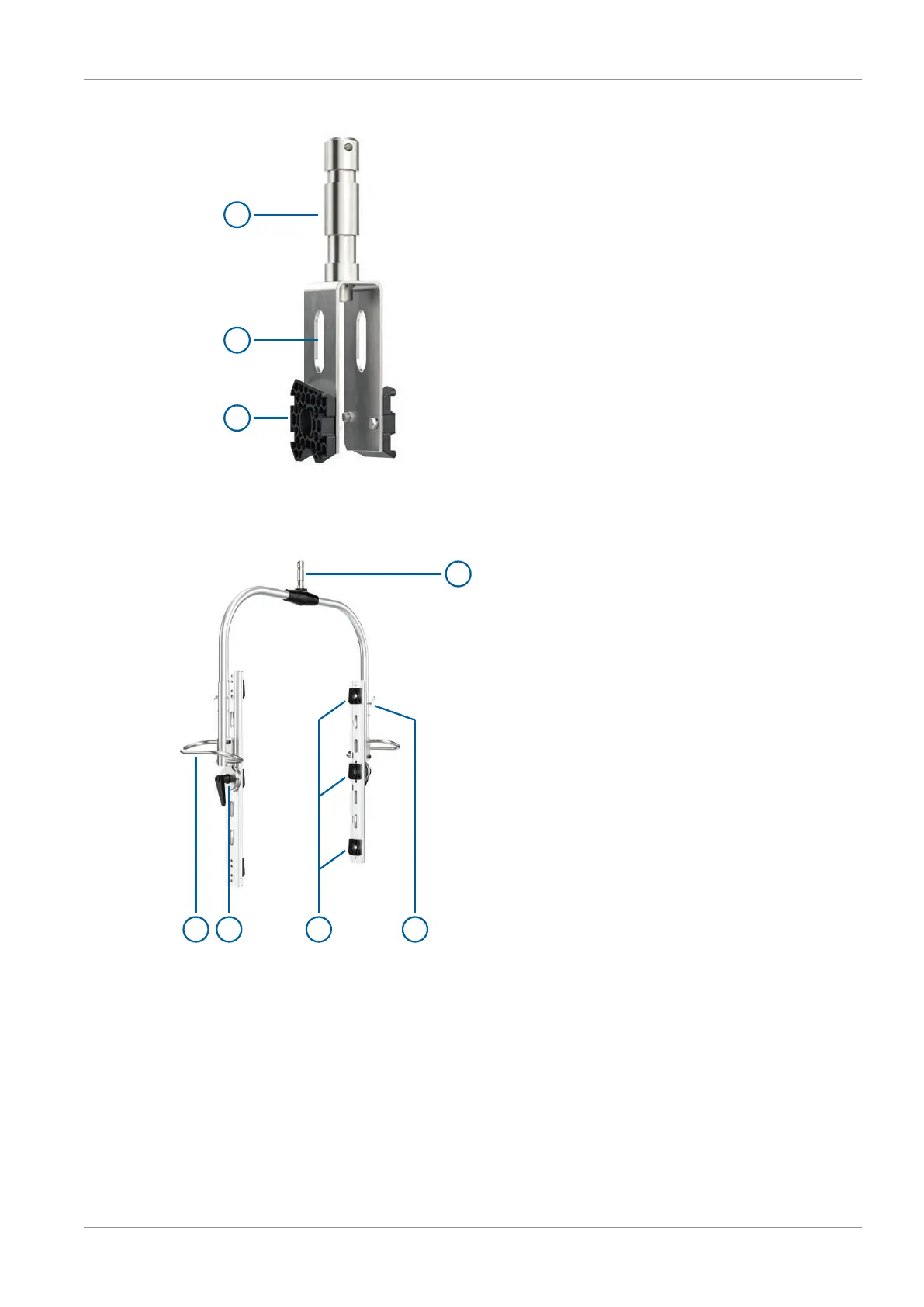

Illustration6: Twin Quick Lock (shown with 28 mm
spigot)
1 28 mm spigot or half coupler
2 Safety rope attachment (2x)
3 Yoke adapter (2x)
Modular Yoke
Illustration7: X23 Modular Frame (Shown without
daisy chain cabling)
1 Handle (2x)
2 Tilt brake with angle indicator (2x)
3 Quick-Lock mounting brackets (X22: 2
pairs, X23: 3 pairs)
4 Screw, pin and needle (2x)
5 28 mm spigot
The X Modular Yoke is a silver aluminum yoke designed to work together with either the X22
Modular Frames or the X23 Modular Frames. It includes a 28 mm spigot and it can be disassembled
for storage. The whole process of connecting the frames to the yoke or installing the SkyPanel X to
this rigging system is completely toolless. The X Modular Yoke and the Frames for X22 and X23
include all the daisy chain power and data cables.
