Rev D CHP Max DC Power Supply 5-7

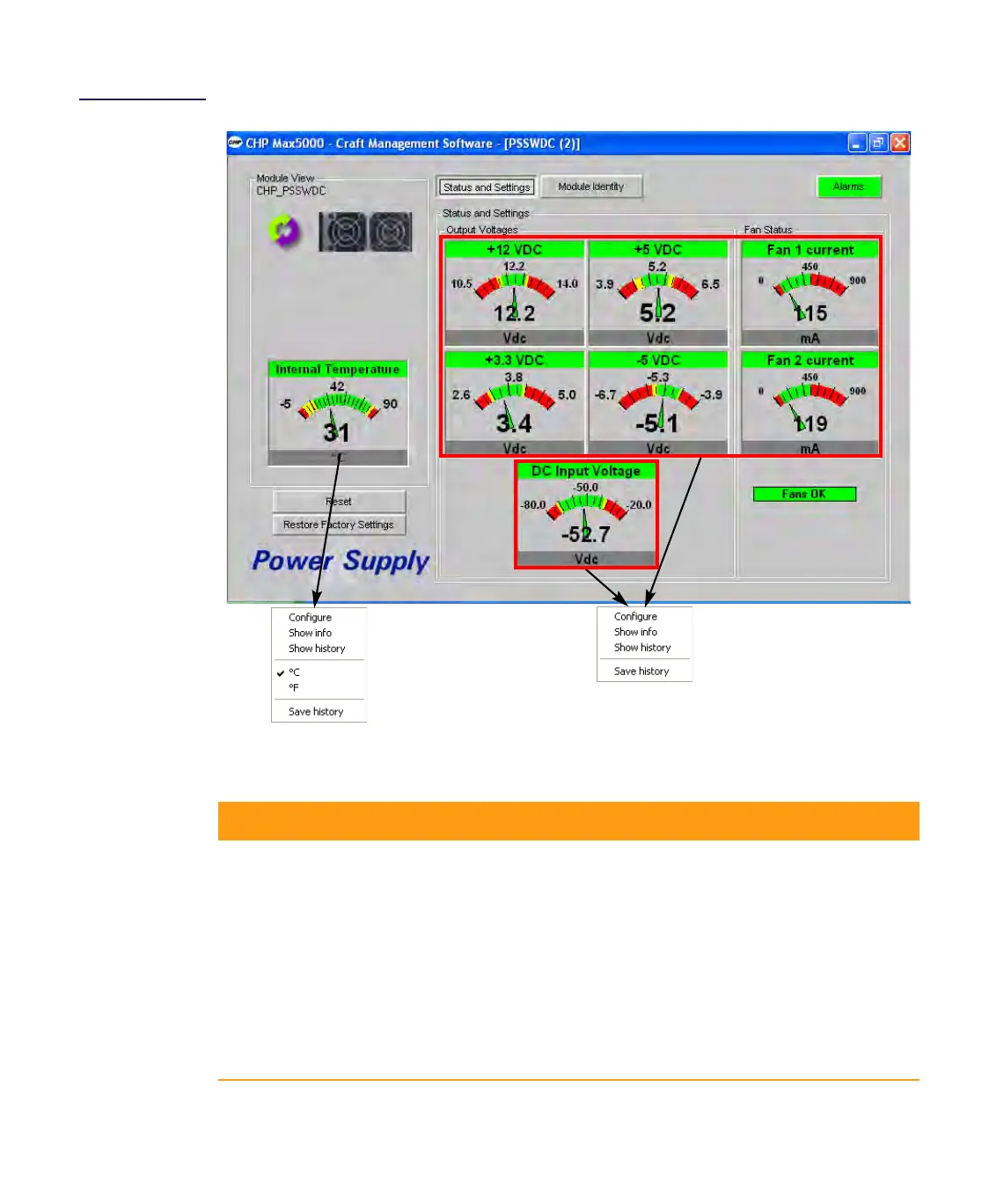

Figure 5.5
DC Power Supply
Status and Settings
Management
Window
Table 5.3 Controls and Functions of the Craft Management Software
Control Function
Internal Temperature
Configure Sets major low, minor low, minor high, and major high alarm limits.
Show info Lists the four alarm thresholds, temperature units (°C or °F), and
graphical display configuration information.
Show history Displays a graph of temperature vs. time.
°C or °F Allows you to select the temperature units (°C or °F) to display.
Save history Saves temperature data points vs. time to an Excel file format.
Reset Resets the selected DC power supply module.
Window resulting from right clicking
on +12 VDC, +5 VDC, Fan 1 current,
+3.3 VDC, –5 VDC, Fan 2 current, or DC
Window resulting from right
clicking on Internal
To Next Page
