Rev D CHP Max DC Power Supply 5-17

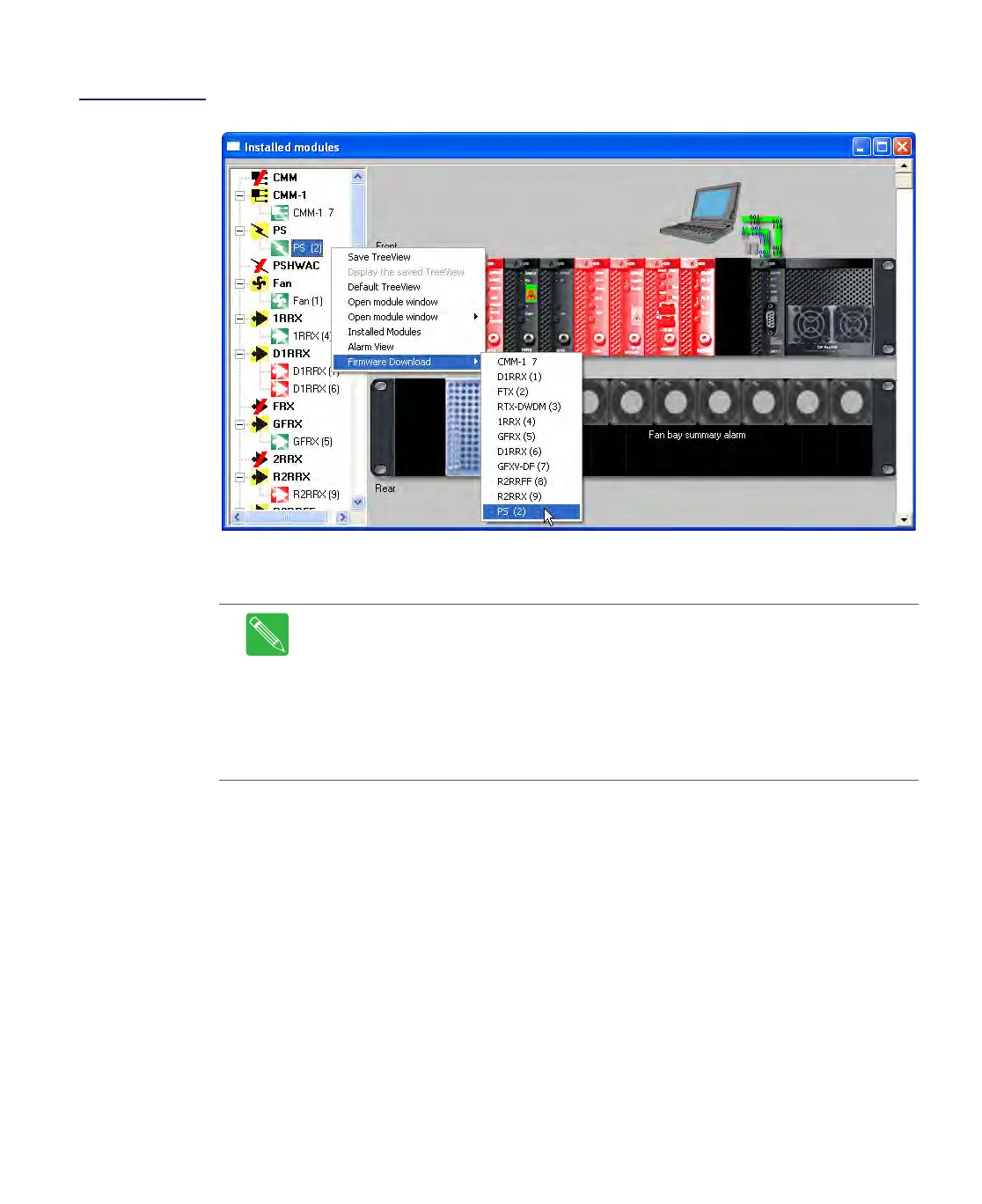

Figure 5.13
Firmware Download
Method 2
10. Navigate through the Open dialog box to where the firmware file (.hex extension) for
the DC power supply module is located.
11. Select the firmware file of the appropriate model listed in Table 5.5 on page 5-13 to
download and click Open to initiate the download. Click OK to confirm that you want
to start downloading the firmware.
12. If either an SMM-1 or CMM-1 module is installed in the chassis, after the firmware is
downloaded into the required module(s) click the On radio button in the Autoconfig
window to enable the auto-configuration mode.
Note Do not abort downloading the firmware files. If the file download process is
abnormally terminated, you will need to restart the download process. To do this,
close the GUI and start over using the appropriate firmware file in Table 5.5 on
page 5-13.
Note If you encounter a problem downloading the firmware, ensure that the
CMM-1 or SMM-1 module is fully inserted into the chassis. If the problem still exists,
replace the CMM-1 or SMM-1 with a spare module to verify if the originally installed
CMM-1 or SMM-1 is working properly.
