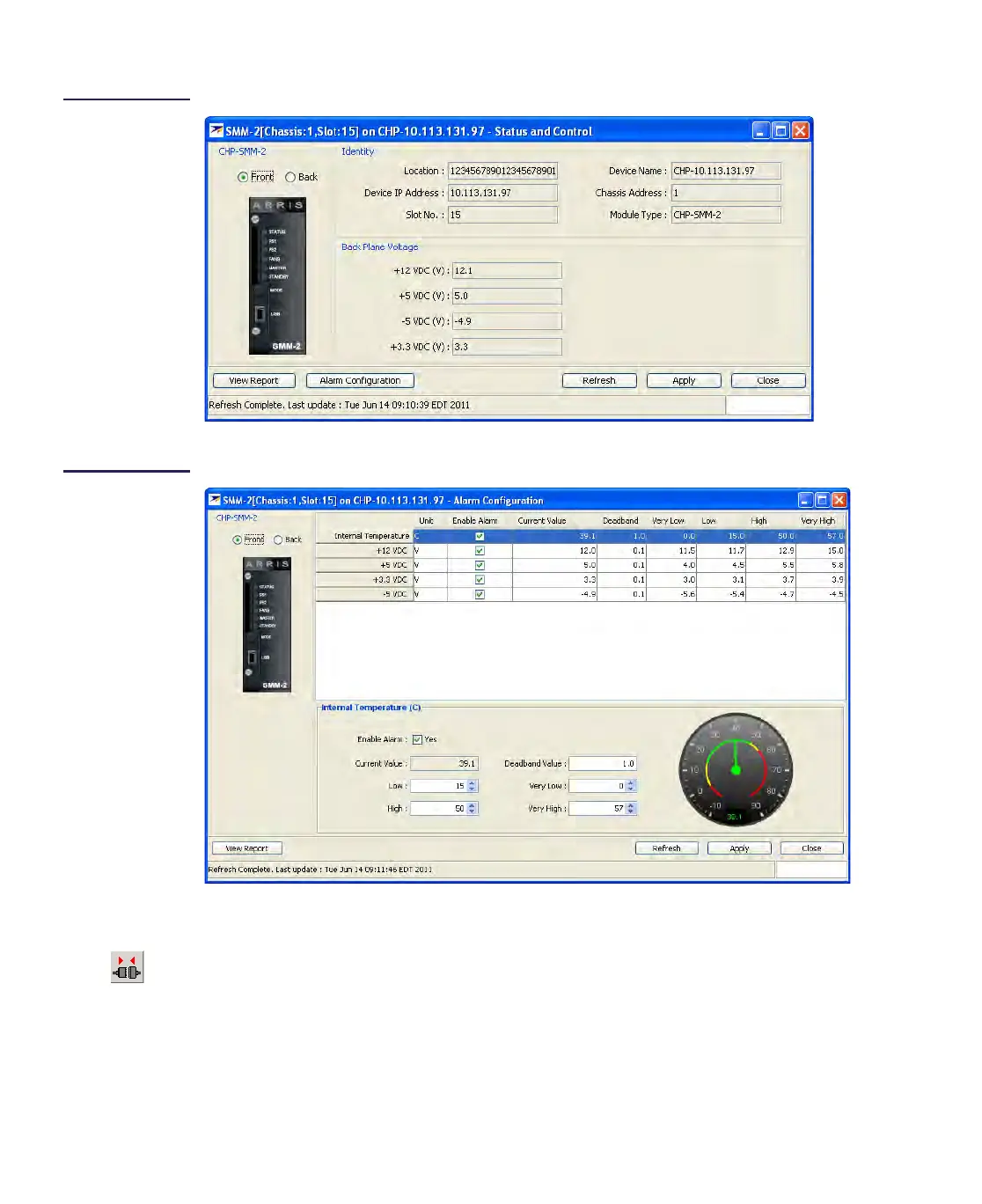

Figure 2.9
SMM-2 Status and
Control Window
Figure 2.10
SMM-2 Alarm
Configuration
Window
Craft Management Software Functions
After launching the CHP Max Craft Management Software, click on the Disconnected button or
click Communication > Connect and then double-click on any of the eight fans on the rear
of the chassis. The Status and Setting window of the chassis fan bay is displayed in
Figure 2.11.
