Rev D CHP Max5000 Chassis (Front Fiber Version) 3-7
Module Locations

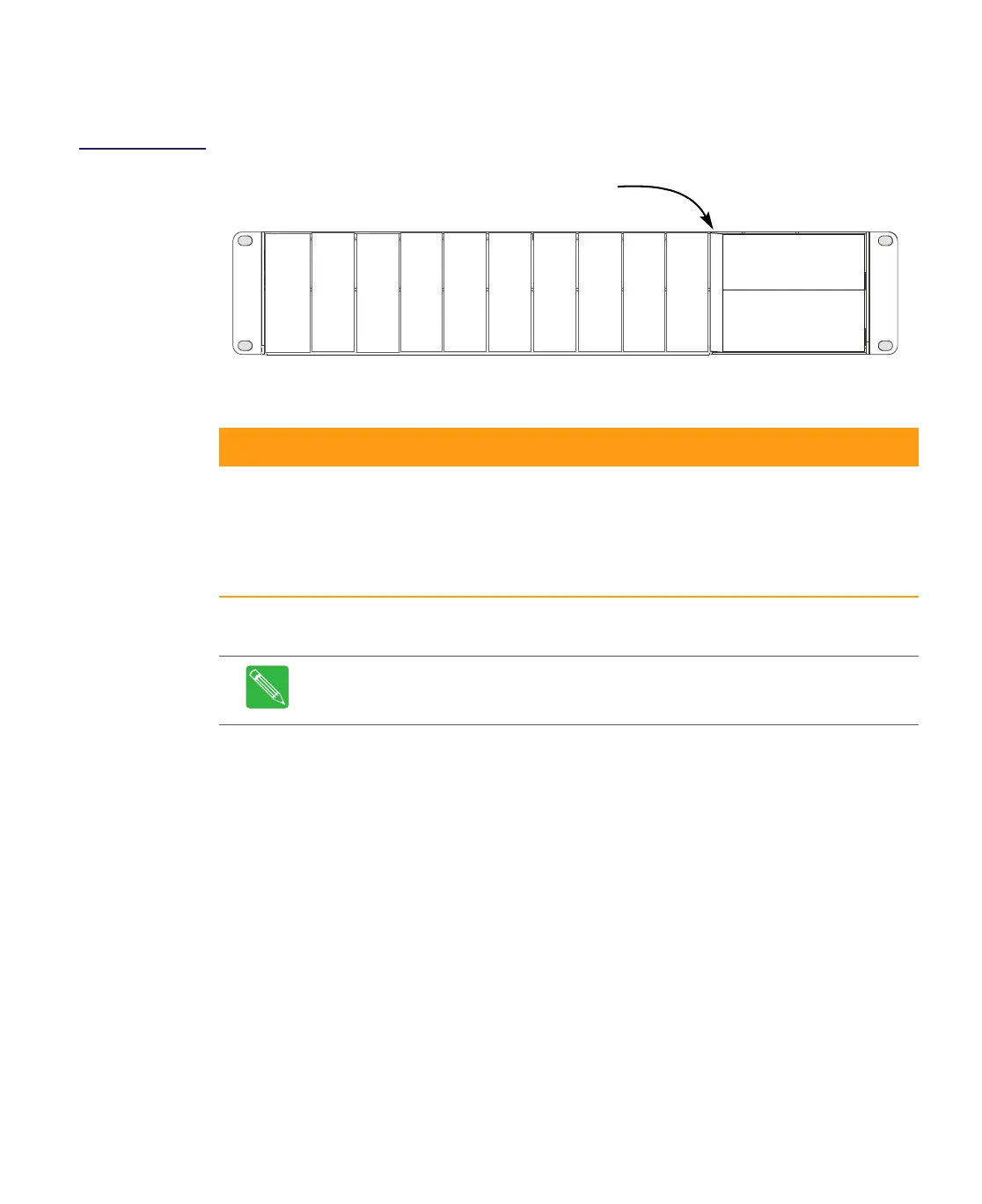

Figure 3.3
CHP Module
Locations
Table 3.4 CHP Max Module Locations
Location Description
Application Module Each developed application module fits into a single module slot. Some
future modules will require multiple slots. Total of ten slots.
Power Supply Module One CHP Max power supply module fits into each slot. Total of two slots.
Management Module Craft Management Module (CMM) or System Management Module (SMM)
slides into this slot.
Note ARRIS recommends using a 475 Watt power supply rather than a 250 Watt
power supply if a chassis will be fully populated with CORWave II (CHP-C2-)
transmitter modules.
Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9
Slot 10
PS Slot 1
PS Slot 2
(Slot 11)
(Slot 12)
Application Module Slots (10) Power Supply Slots (2)
Management Module Location
CMM or CMM-1 (slot 14)
SMM, SMM-1, or SMM-2 (slot 15)
Front View
