4. Buzzers
This section teaches how to program a Buzzer to play and stop as well as how to use list and function
blocks.

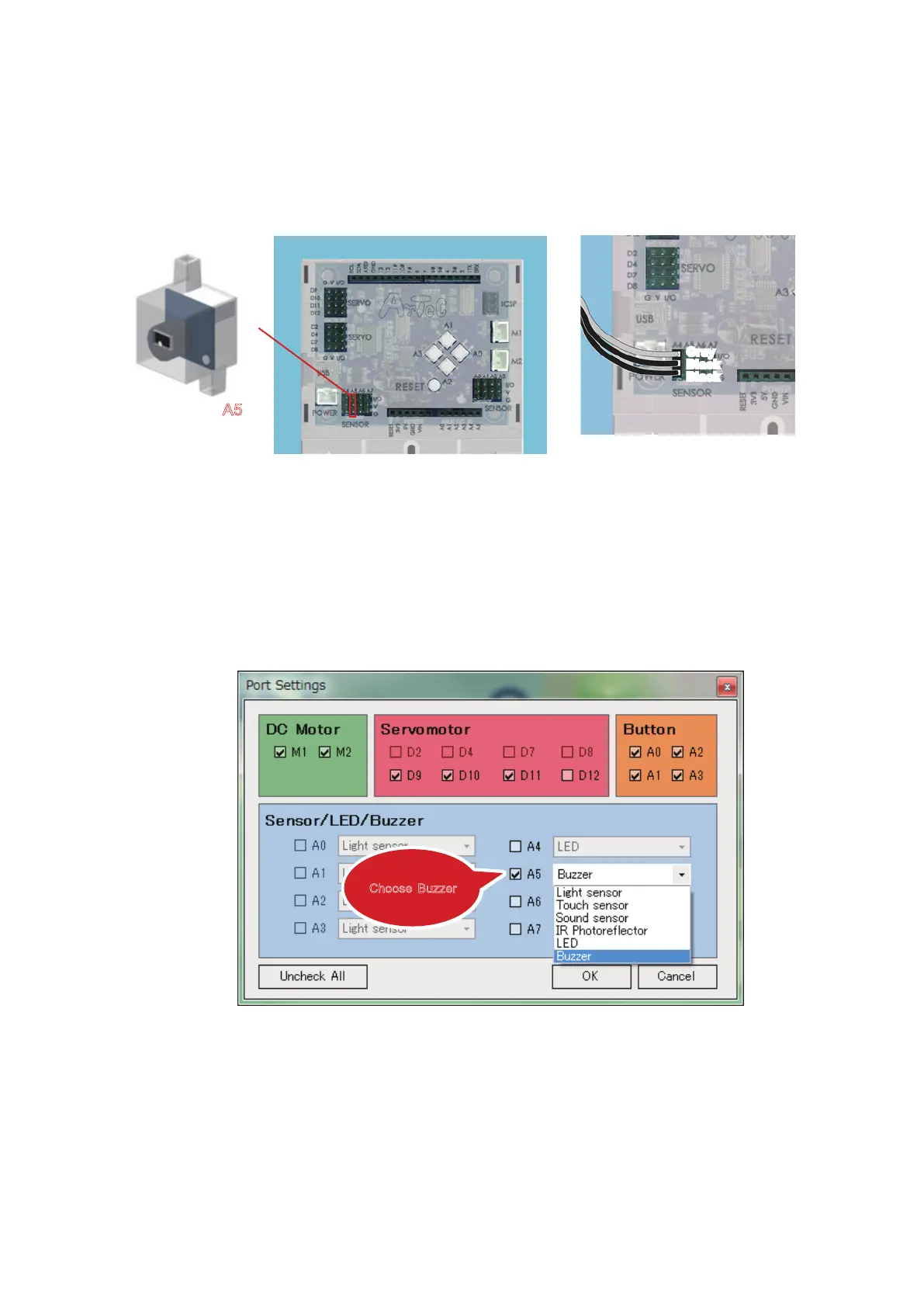

4.1. Connecting a Buzzer
Connect your Buzzer to Sensor/LED/Buzzer connector A5 on the Studuino.
Keep an eye on your cables!
The gray wire should be at the top
.
ć
Gray
Black
Black
4.2. Port Settings
Before programming, you'll need to set the ports in the Block Programming Environment to match the
parts connected to your Studuino. Select Edit from the menu and choose Port Settings to open the Port
Settings dialog box. Check A5 under Sensor/LED/Buzzer and choose Buzzer.
