5. Push-buttons and Sensors
In this section you’ll learn how to program and use Push-buttons, sensors, and LEDs.
5.1. Connecting an LED

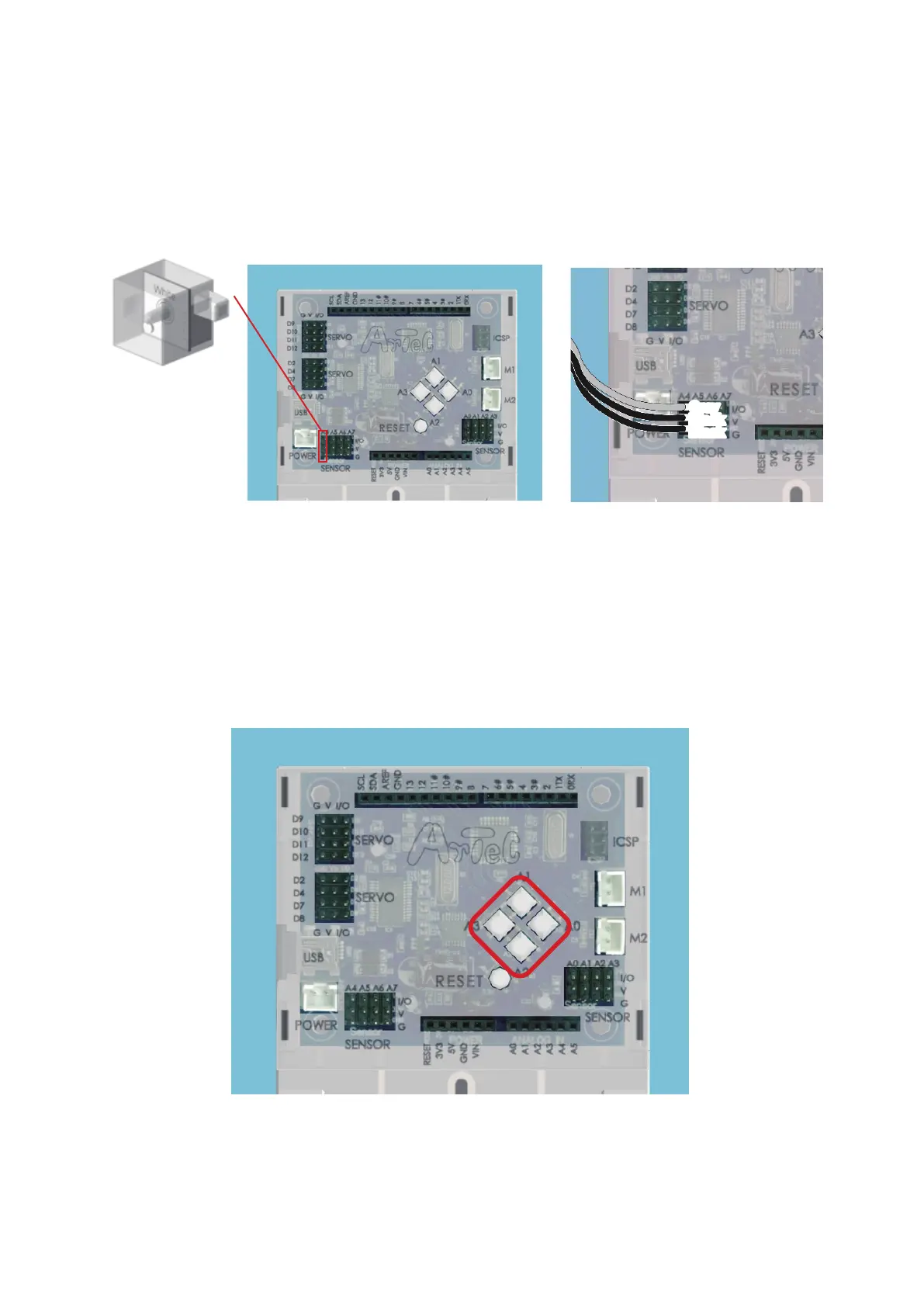

You’ll need to use an LED, so go ahead and plug one into connector A4 on your Studuino.
5.2. Push-buttons
You can nd the Push-buttons right on your Studuino. They’re assigned to connectors A0-A3.
Keep an eye on your cables!
The gray wire should be on the inside.
Gray
Black
Black
A4
LED
A3
A2
A0
A1
