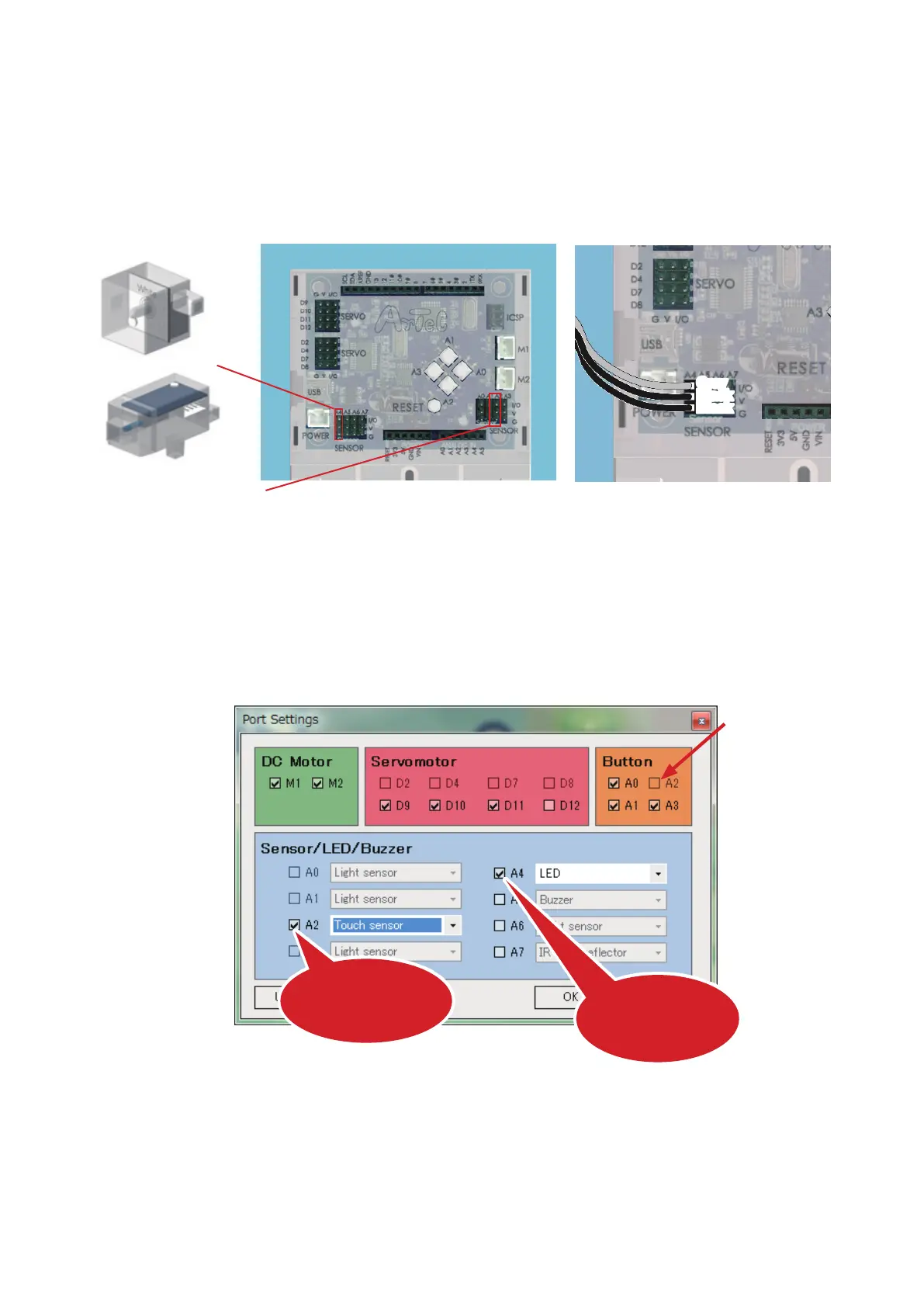

5.5.2. Port Settings
Before programming, you'll need to set the ports in the Block Programming Environment to match the parts
connected to your Studuino. Select Edit from the menu and choose Port Settings to open the Port Settings
dialog box. Uncheck Button A2. Now check A2 under Sensor/LED/Buzzer and choose Touch Sensor.
You’ll also need to check A4 and choose LED.
5.5. Touch Sensors
A Touch Sensor is a kind of switch that detects whether or not you press it. You can use one to detect things
like collision with objects.
5.5.1. Connecting a Touch Sensor
Connect an LED to Sensor/LED/Buzzer connector A4 on your Studuino and your Touch Sensor to A2.
Gray
Black
Black
A4
A2
Keep an eye on your cables!
The gray wire should be at the top.
LED
Touch Sensor
Check and choose
Touch Sensor
Check and choose
LED
① Uncheck
