ARTEX/ACR Electronics, Inc.
A3-06-2824 Handheld Programmer Operations Manual
Y1-03-0272 Rev. F Company Confidential Page 18

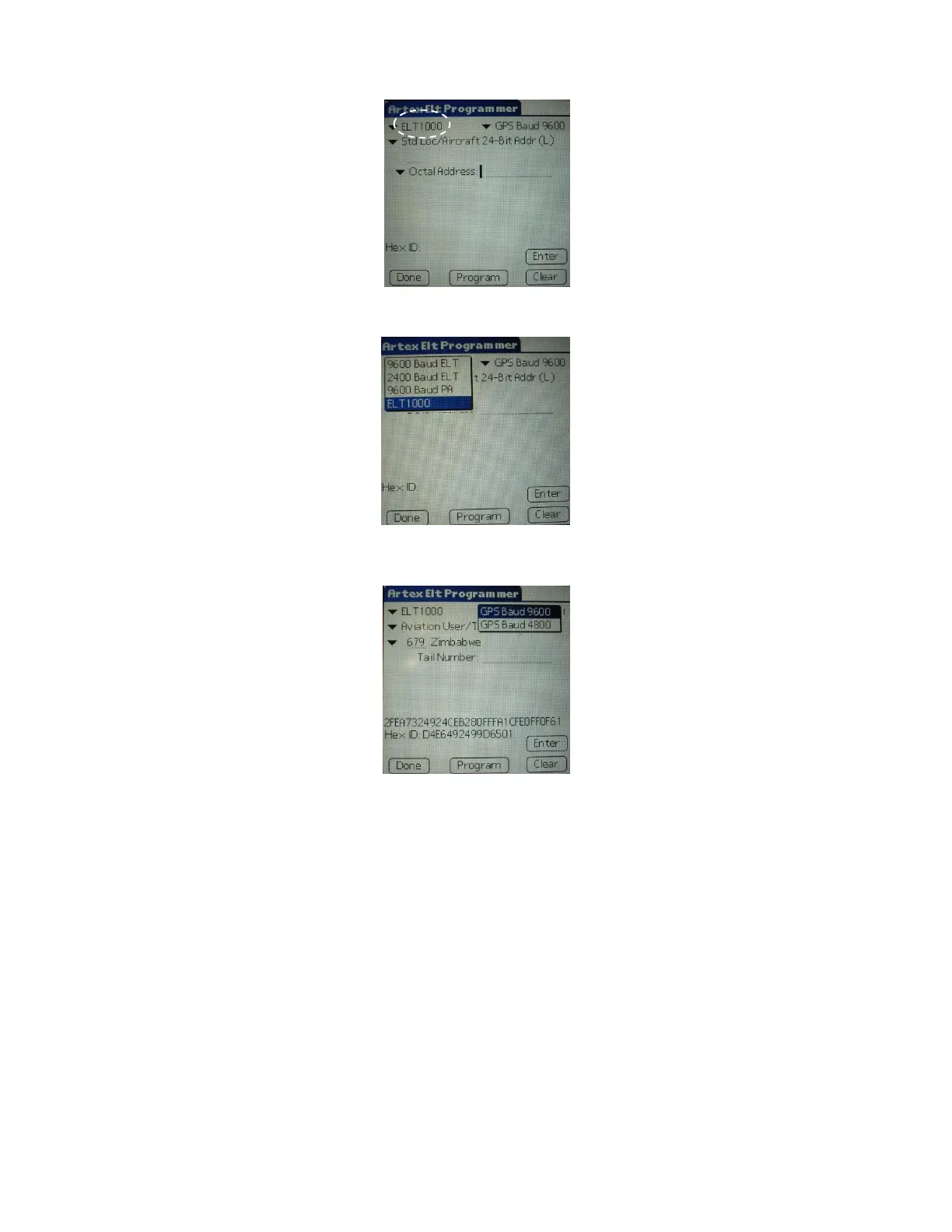

Figure 11: ELT 1000 Will Display Baud Rates
Figure 12: Baud Rate Screen Drop-Down Menu
Figure 13: ELT 1000 Baud Rate Screen Drop-Down Menu
Refer to Table 1 as instructed to complete programming sequences. For Table 1,
protocols are defined as follows:
Std Location = Aircraft 24 Bit Address (Long) and ELT Serial (Long)
Aviation User = Tail Number (Short)
Serial User = Aircraft 24 Bit Addr (Short), Aircraft 24 Bit / National (Short), ELT /
COSPAS (Short) and Aircraft Operator (Short)
National Location = ELT Serial (Long)
User Location = Aviation User / Tail Number / Location (Long)
Serial User Location (ELT 345, ELT 1000, ELT 3000, and ELT 4000 Series
Only) = Serial User/Aircraft 24-Bit Loc (Long), Serial User/ELT/Cospas Loc (Long),
and Serial User/Aircraft Operator Loc (Long).
