ARTEX/ACR Electronics, Inc.
A3-06-2824 Handheld Programmer Operations Manual
Y1-03-0272 Rev. F Company Confidential Page 6

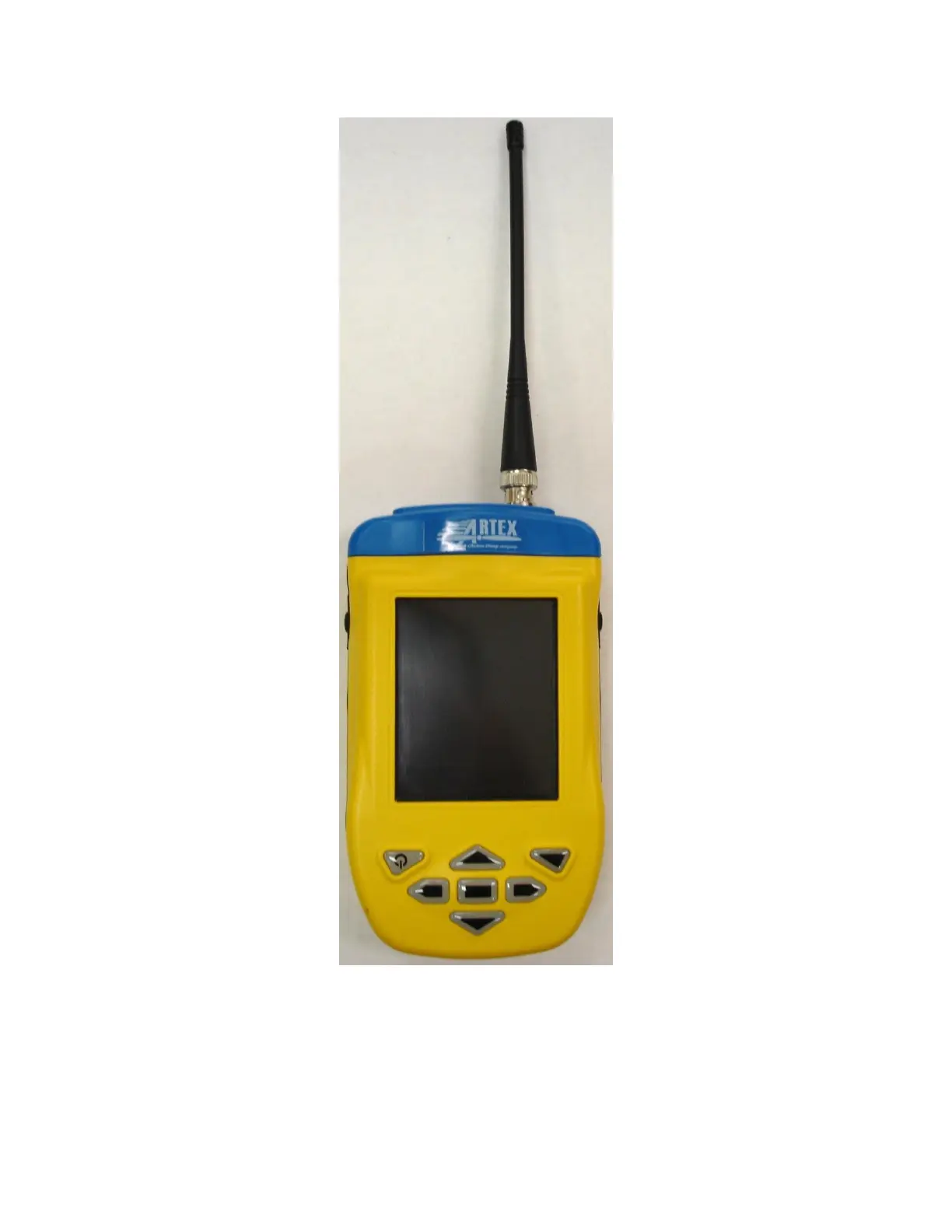

Figure 1: A3-06-2824/8707 Handheld Programmer
2. Hardware
The Handheld Programmer allows communication with any Artex 406 MHz ELT. It inverts
and raises the data signal from the ELT to an RS-232 signal level. This enables the ELT to
“talk” to the Handheld Programmer for programming and diagnostic purposes.
