ARTEX/ACR Electronics, Inc.
A3-06-2824 Handheld Programmer Operations Manual
Y1-03-0272 Rev. F Company Confidential Page 35

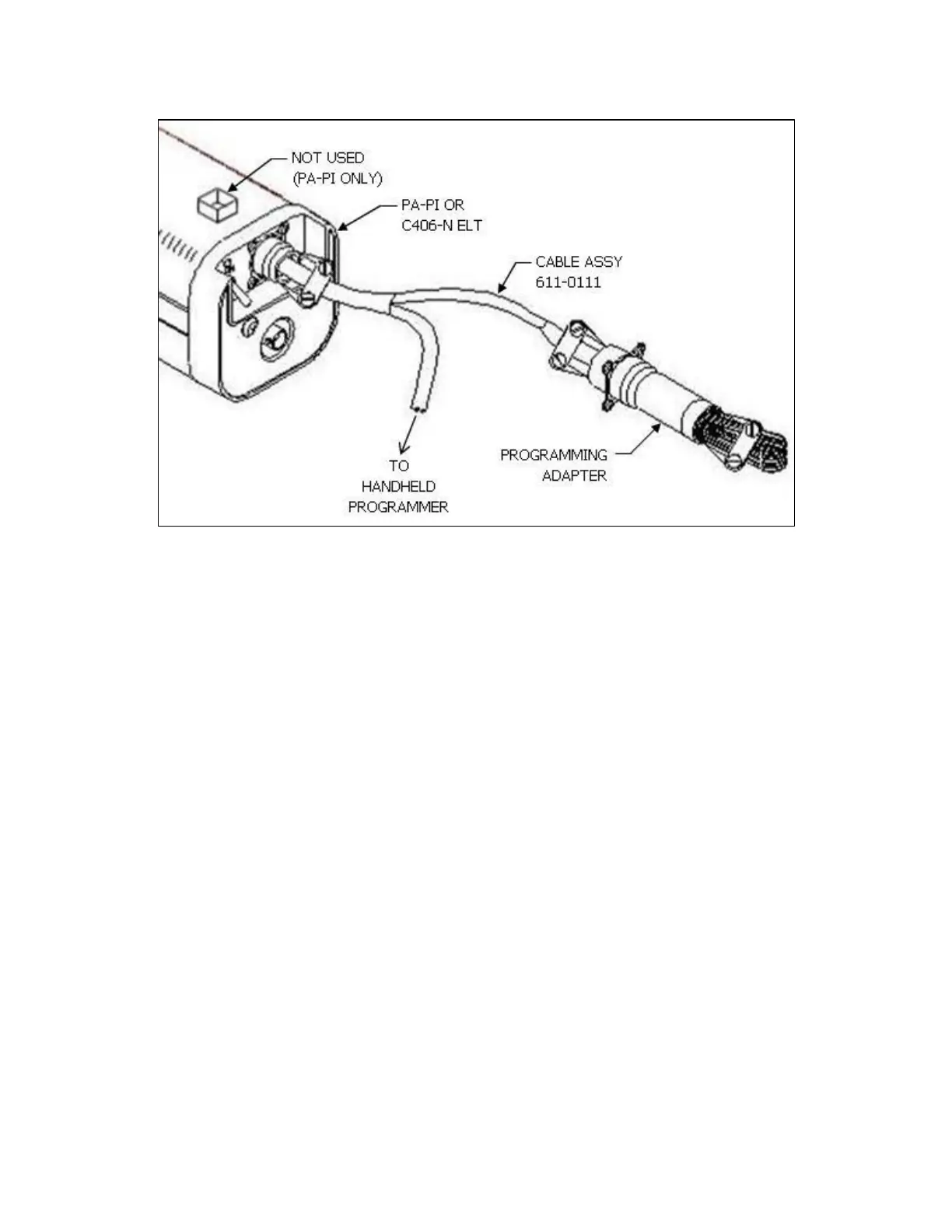

Figure 16: Programming (PA with Cannon Plug)
5.1.2 Without Cannon Plug Attached To PA
Communication between the PA and the Handheld Programmer requires translation
by the Programmable Adapter - Programmer Interface (PA-PI), P/N 500-8000.
To program a PA, attach it to the PA-PI, using the six wires coming from the PA.
Attach them to the connector on top of the PA-PI matching the wire color codes to
the designated pins on the connector.
Connect the PA-PI to the Handheld Programmer using cable P/N 611-0111 and
mating the cable female 22-pin circular connector to the male connector on the PA-PI,
as shown in Figure 17.
