Arturia MiniBrute User's Manual 13 6 Legal notes

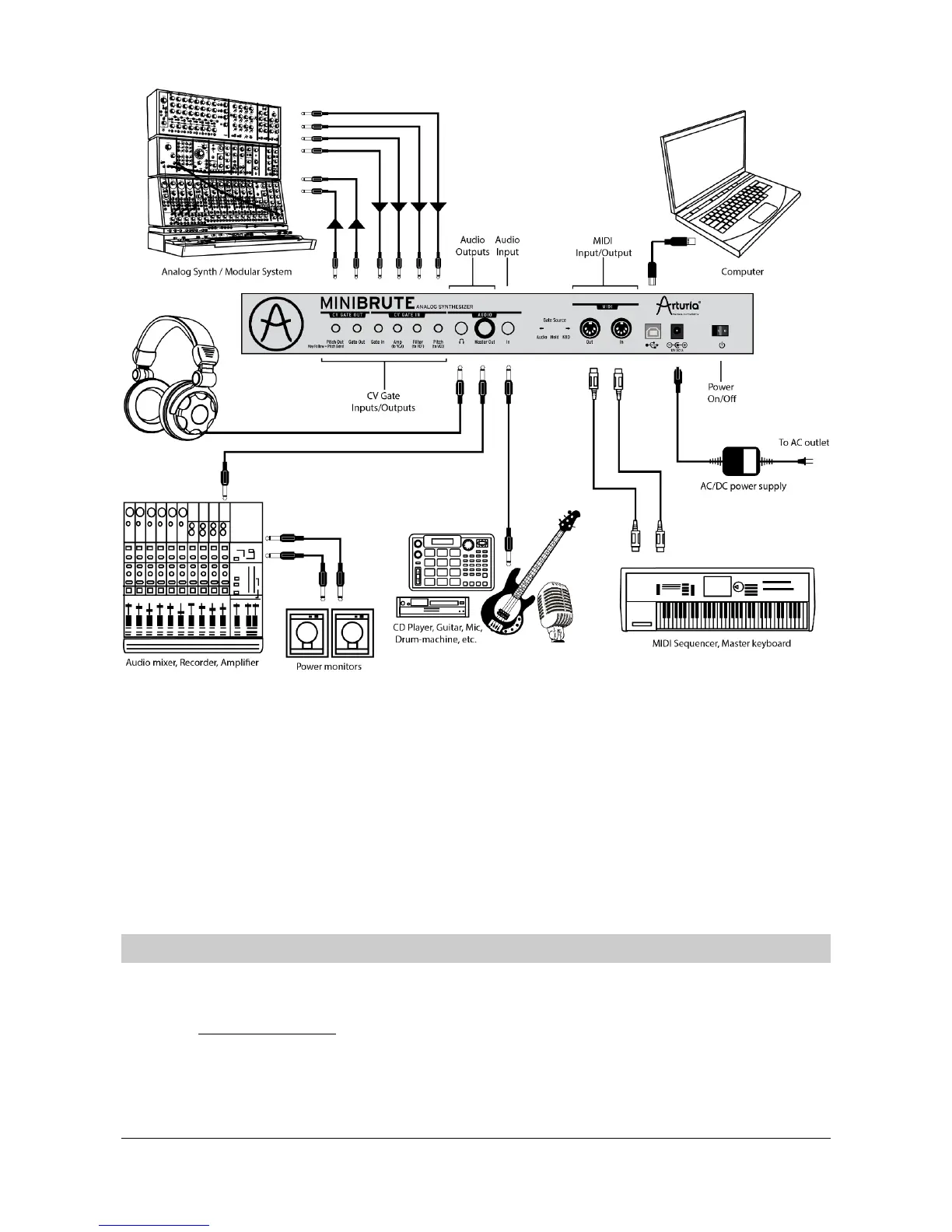

Here is an overview of the MiniBrute synthesizer’s connectors:
Audio Input & Outputs 6.35 mm (1/4'') mono jacks
CV/Gate ..................... 3.5 mm (1/8'') miniature mono jacks
MIDI Input & Output .. Standard MIDI DIN-5
USB................................ Standard USB type B
Power DC Input .......... Internal 2.1 mm, external 5.5 mm
2.4 Warm-Up and General Tuning
As with all other true analog synthesizers, after being powered-on the MiniBrute
needs a warm-up period of approximately five to ten minutes. The allows reaching
a stable operating temperature, which insures accurate oscillator pitch. Warm-up
time depends on the external temperature; a colder ambiance will require longer
warm-up times, while a hotter ambiance will result in shorter times.
