Aruba Instant On 1930 Series User Manual

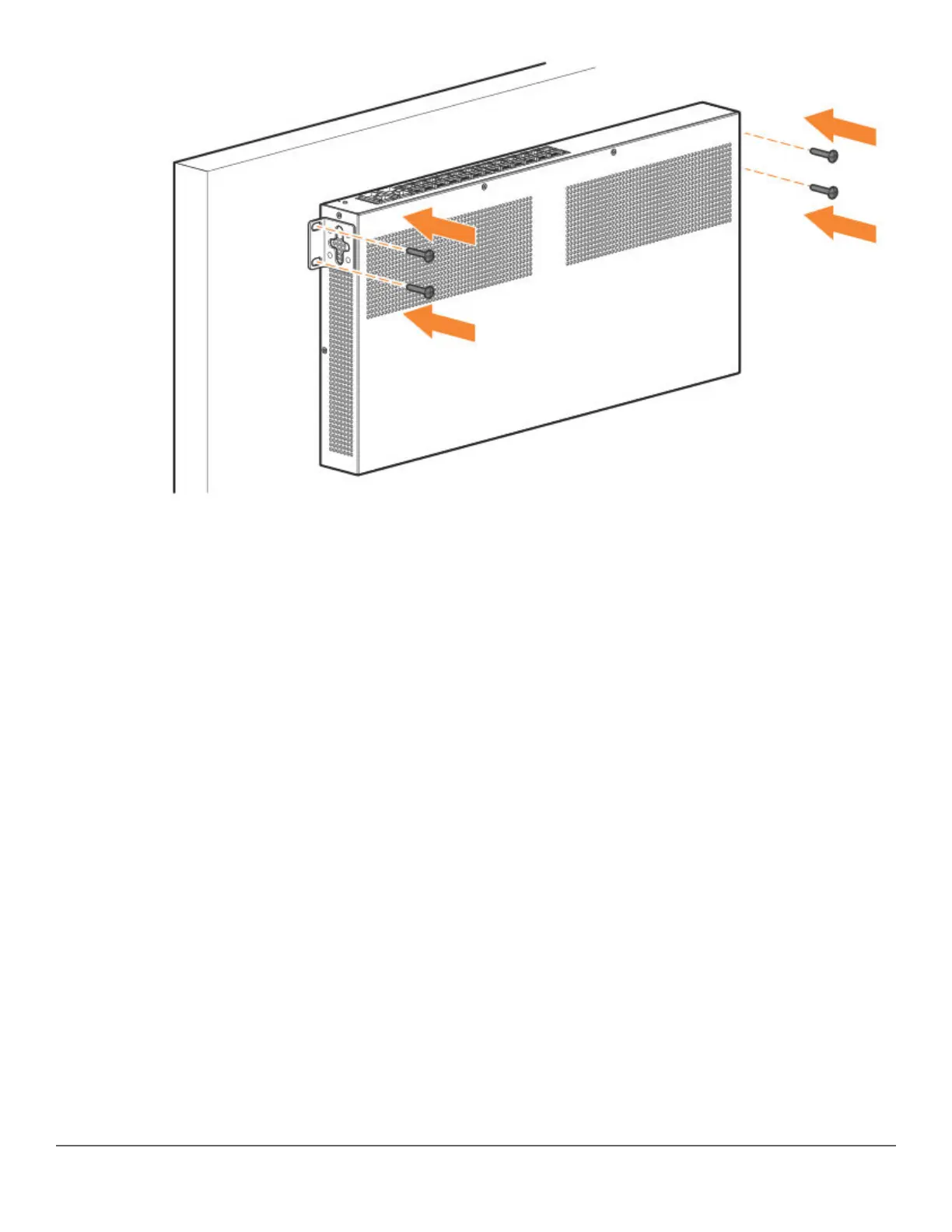

To mount the 8-port switches, follow these steps:
1. In the required location, mark the position for the mounting screws. The hole-to-hole distance is 4.961
inch (126 mm) for JL680A and 6.575 inch (167 mm) for JL681A.
2. Use a #1 Phillips (cross-head) screwdriver and two of the included 20-mm M4 tap screws. Set the screw
heads approximately 2 mm away from the mounting surface to allow the switch to slide onto the screws.
Wall anchors are included in the accessory kit for use with plastered brick or concrete walls.
Chapter 4 Installation overview 29

Aruba Instant On 1930 Series Specifications

General

Model	Aruba Instant On 1930 Series
Switching Capacity	Up to 176 Gbps
Layer	Layer 2+
MAC Address Table Size	16K entries
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Ports	8, 24, or 48 10/100/1000BASE-T ports
Uplink Ports	2 or 4 SFP/SFP+ ports
PoE Options	PoE and non-PoE models available
Management	Cloud-managed with Aruba Instant On mobile app or web portal
Mounting	Rack-mountable
Jumbo Frame Support	9216 bytes
Layer 2 Features	VLANs
Security Features	Access Control Lists (ACLs)
Power Supply	Internal power supply
Humidity	15% to 95% non-condensing
Certifications	CE
