Aruba Instant On 1930 Series User Manual

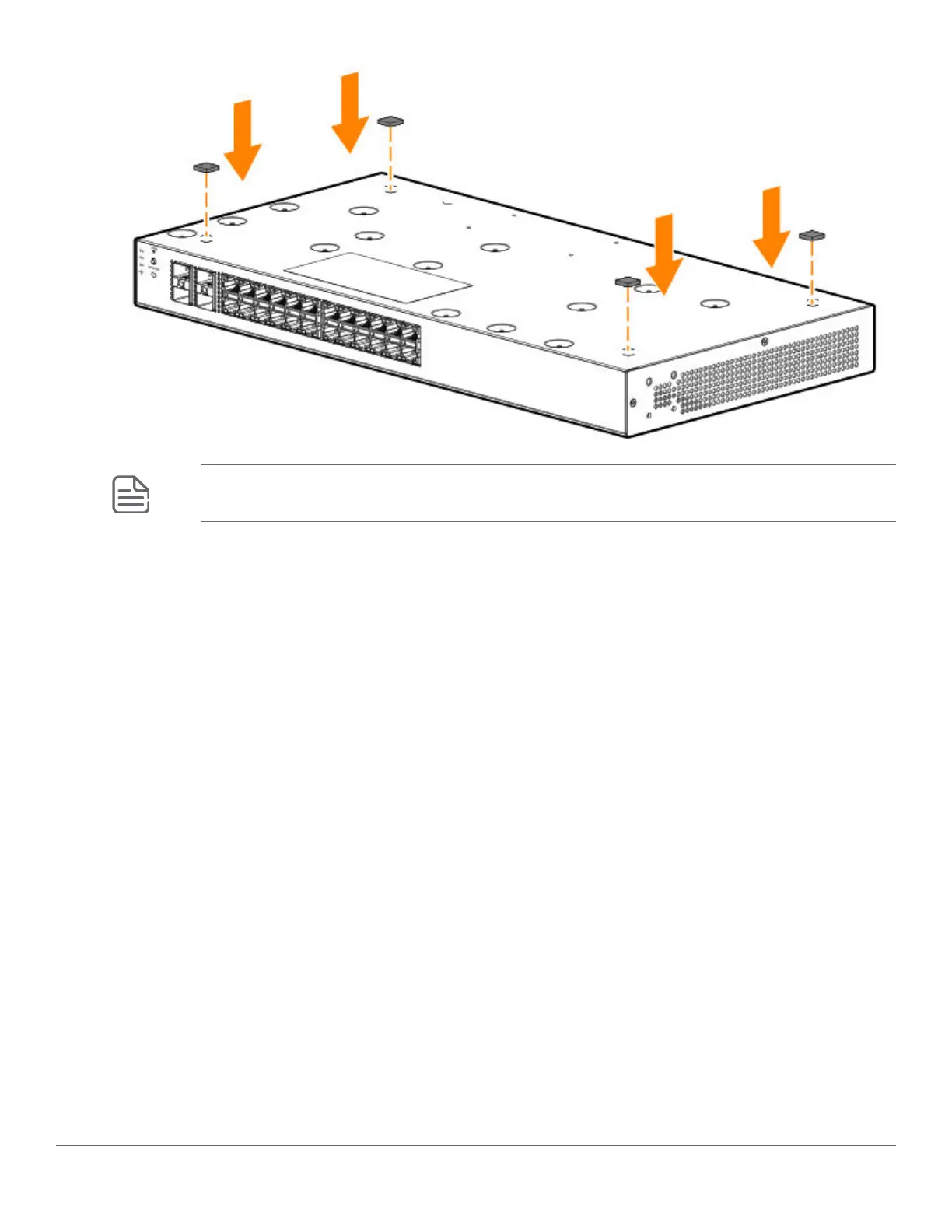

NOTE: Nothing should be placed on top of the switch. Adequate spacing on all sides needs to
be maintained for ventilation.
4. Connect the switch to a power source
Procedure
1. For JL680A switches, connect the AC/DC adapter’s power cord to the power connector on the back of the
switch, and then plug the AC/DC power adapter into a nearby, properly grounded electrical outlet.
Chapter 4 Installation overview 31

Aruba Instant On 1930 Series Specifications

General

Model	Aruba Instant On 1930 Series
Switching Capacity	Up to 176 Gbps
Layer	Layer 2+
MAC Address Table Size	16K entries
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Ports	8, 24, or 48 10/100/1000BASE-T ports
Uplink Ports	2 or 4 SFP/SFP+ ports
PoE Options	PoE and non-PoE models available
Management	Cloud-managed with Aruba Instant On mobile app or web portal
Mounting	Rack-mountable
Jumbo Frame Support	9216 bytes
Layer 2 Features	VLANs
Security Features	Access Control Lists (ACLs)
Power Supply	Internal power supply
Humidity	15% to 95% non-condensing
Certifications	CE
