Aruba Instant On 1930 Series User Manual

NOTE: Use only Aruba transceivers in 1930 switches. Using any other transceivers is done at
your own risk and may void support and warranty.
1. Prepare the installation site
If you have not already done so, carefully read
Site preparation and switch installation precautions. Be
sure to follow the provided guidelines to ensure proper operation when installing the switch into a network:
2. Verify the switch passes self test
Before mounting the switch, verify it is working properly by plugging it into a power source and conrming
that it passes self test.
Procedure

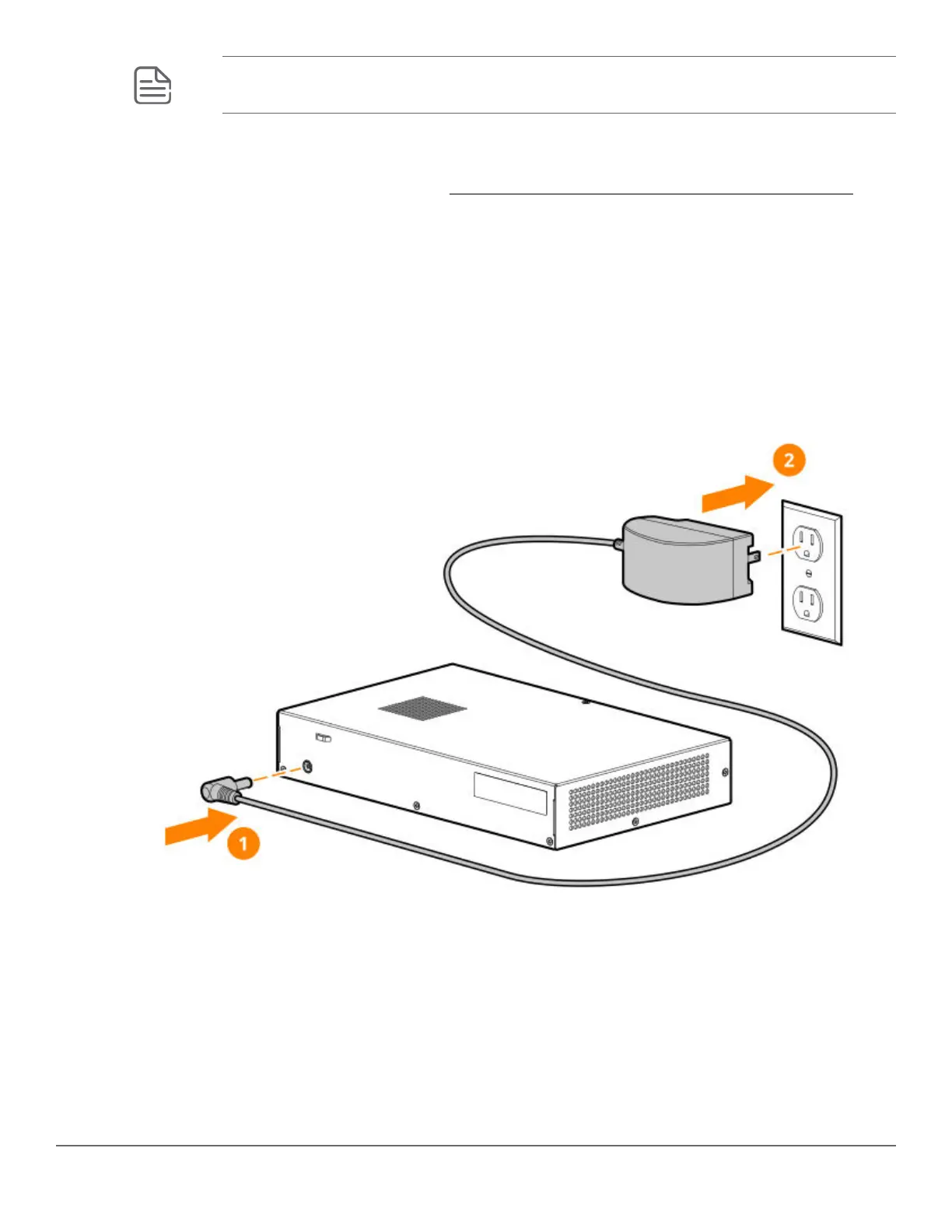

1. For JL680A switches, connect the AC/DC adapter’s power cord to the power connector on the back of the
switch, and then plug the AC/DC power adapter into a nearby, properly grounded electrical outlet.
For JL681A, JL682A, JL683A, JL684A, JL685A, and JL686A switches, connect the power cord supplied
with the switch to the power connector on the back of the switch, and then into a properly grounded
electrical outlet.
24 Aruba Instant On 1930 Installation and Getting Started
Guide

Aruba Instant On 1930 Series Specifications

General

Model	Aruba Instant On 1930 Series
Switching Capacity	Up to 176 Gbps
Layer	Layer 2+
MAC Address Table Size	16K entries
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Ports	8, 24, or 48 10/100/1000BASE-T ports
Uplink Ports	2 or 4 SFP/SFP+ ports
PoE Options	PoE and non-PoE models available
Management	Cloud-managed with Aruba Instant On mobile app or web portal
Mounting	Rack-mountable
Jumbo Frame Support	9216 bytes
Layer 2 Features	VLANs
Security Features	Access Control Lists (ACLs)
Power Supply	Internal power supply
Humidity	15% to 95% non-condensing
Certifications	CE
