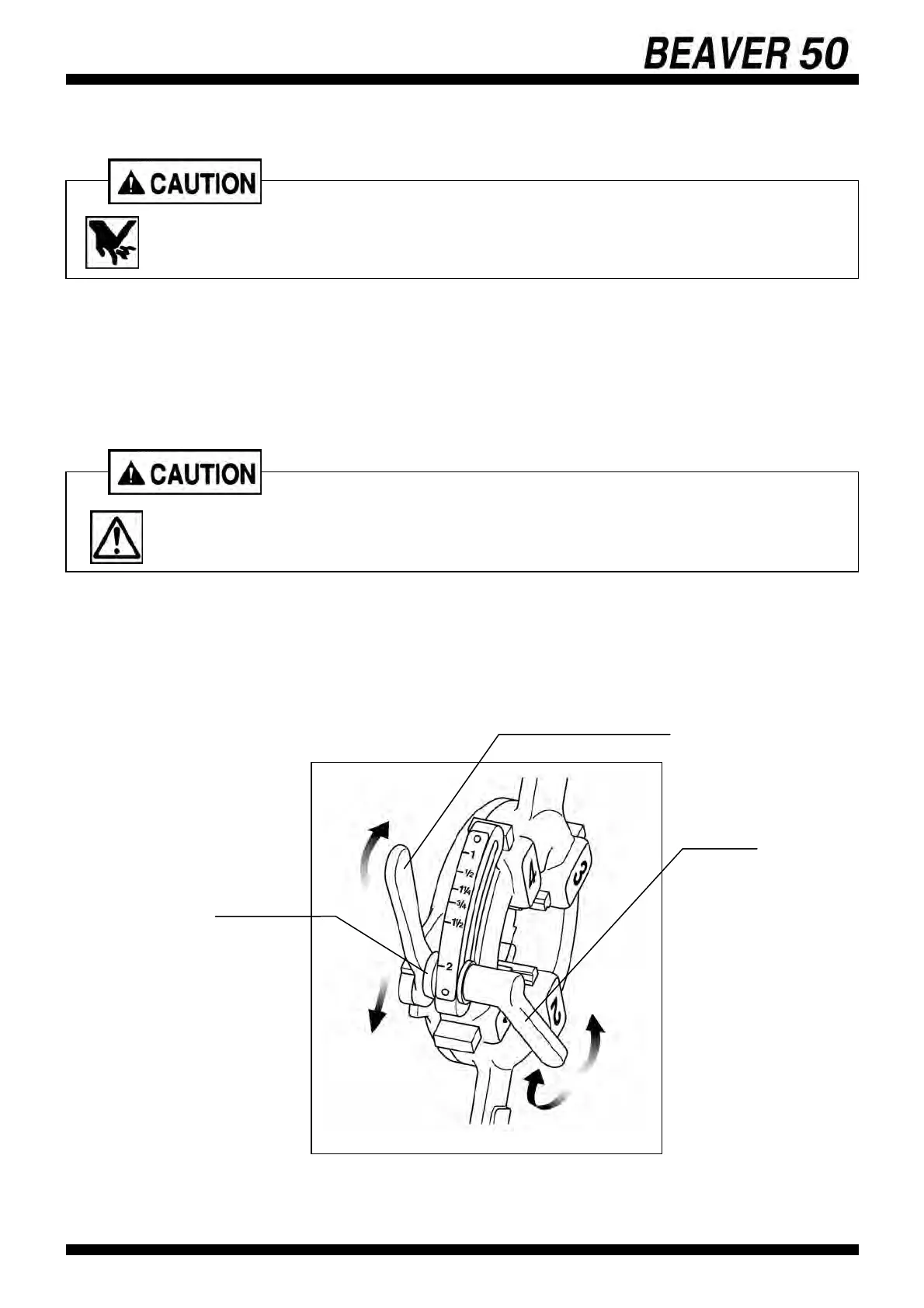

■ For manual Die-Head
[Removal]
(1) Loosen The Die-Nut，lower the link fully，tighten the Die-Nut and throw the Open-Close Lever
up to remove the Dies.(fig20)
(2) When the Die-Head is lowered, pull out Dies Nos. 1 and 4 from above.
(3) Lift and remove the Die-Head and pull Dies Nos. 2 and 3 downward.
[Installation]
(1) Loosen The Die-Nut，lower the link fully，tighten the Die-Nut and throw the Open-Close Lever
up to remove the Dies.(fig.20)
(2) Insert the Dies with the same number as that of each Die-Head until click sound is heard.
(3) Make sure the numbers of Die-Head and Dies show on the same side.
20
･Wear gloves to avoid cutting hands by the Dies.
･Proper threading cannot be achieved unless the number on the Die-Head slot
matches that of the Dies.
Die-Nut
Open-Close Lever
Link
Loosen
Tighten
Lower
Cause up
〈20〉
