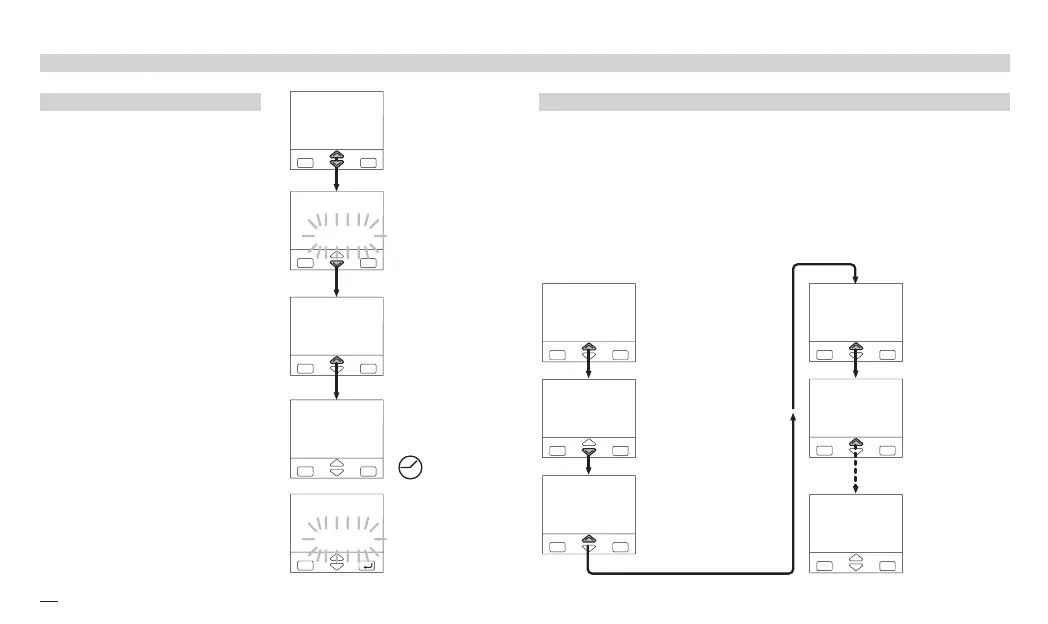

4.2.1 NUMERIC ENTRY
(i.e. the modification of the Setpoint
value from 275.0 to 240.0 )
4.2.2 MNEMONIC CODES SETTING
(e.g. configuration see page 26)
24
4 - Operation
4.2 PARAMETER SETTING
275.0
274.8
275.0
274.8
230.0
274.8
240.0
274.8
240.0
°C
Press $ or % momentar-
ily to change the value of 1 unit
every push
Continued pressing of
$ or
% changes the value, at rate
that doubles every second.
Releasing the button the rate of
change decreases.
In any case the change of the
value stops when it has reached
the max/min. limit set for the
parameter.
In case of Setpoint modification:
press $ or % once to dis-
play the local Setpoint instead
of working Setpoint.
To evidence this change the dis-
play flashes once. Then the
Setpoint can be modified
Press the
$ or % to display the next or previous mnemonic
for the selected parameter.
Continued pressing of $ or % will display further mnemonics
at a rate of one mnemonic every 0.5 s. The mnemonic displayed
at the time the next parameter is selected, is the one stored in the
parameter.
Unit
°C
Unit
°f
Unit
°C
Unit
°f
Unit
none
Unit
ph
Engineering
Units
Degree
Centigrade
Degree
Fahrenheit
Degree
Centigrade
Degree
Fahrenheit
no units
defined
Ph
Operator
mode
working Setpoint
displayed
Local
Setpoint display
Setpoint
modification
Setpoint entry.
The operation is
acknowledged by
one flash of the
display.
after 2 s
————Decrease
————Increase
