5 - Displays

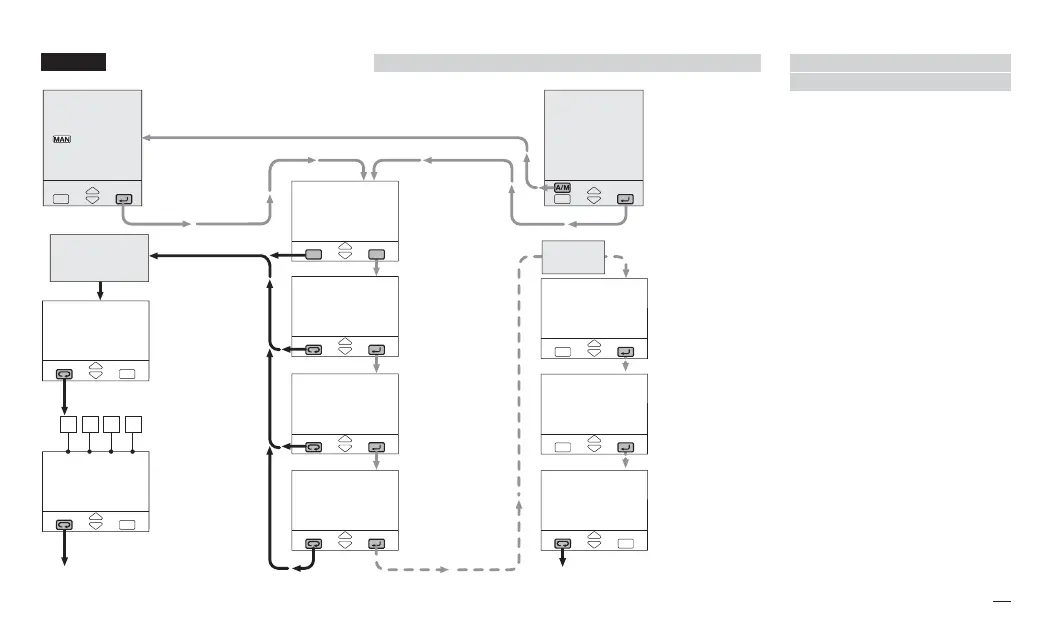

5.1 STANDARD DISPLAY
275.0
274.8
63
275.0
274.8
63
rel.
00A
Hard
3150
Out
30.0
t.s.p.
300.0
Op
63.0
°C
274.8
tune
no
s.sel
none
3fs.H
365.8
ABCD
Product
identification
codes
Manual
mode
Operator mode
Automatic mode
Fastview
parameters
5 DISPLAYS
Software
release
Base
product code
(see page 5)
Engineering
units
Main output
(during the program
run only)
Target
Setpoint value
local mode only
(not displayed if the
Slopes are disabled)
Virtual valve
position
(0...100%)
One shot
tune start
no/yes
Alarm 3 threshold
(high absolute
alarm)
full scale
Stored Setpoint
selection
none/s.LOC/
s.s.p.I/s.s.p.2/
s.s.p.3
Back to the Operator modeBack to the Operator mode
5.2 FAST VIEW
(fast access to the parameters)
With this procedure, simple and
fast, up to 10 parameters, select-
ed through the fast view (see par
4.6 page 52) are displayed and
can be modified by the oper-
ator without requiring the stan-
dard parameter setting proce-
dure.
Press
$% in order to mod-
ify the parameters
The value is entered by press-
ing è key
On left side, please find as an
example a list of parameters on
Fast view menu.
