4.5.1 SETPOINT MENU
42
4 - Operation
4.5 PARAMETERS
For a simpler use of the con-
troller, its parameters have been
organised in menu, according to
their functionality area.
Setpoint
change

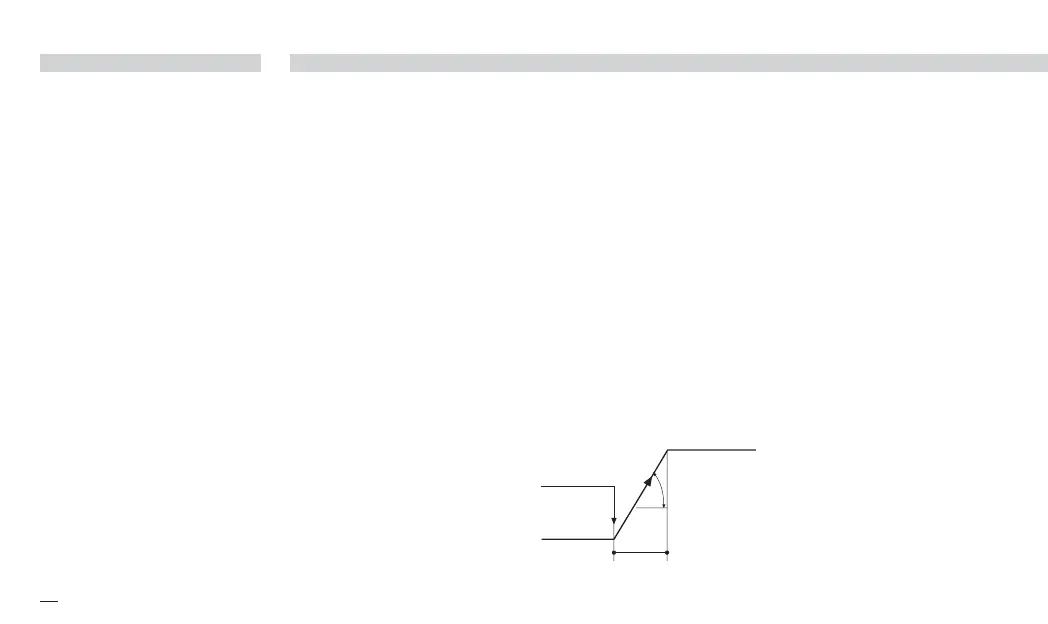

Target Setpoint
= 350°C
t
t = 10
#sL. u = 10
digit/minute
Example
Initial
Setpoint
= 250°C
Setpoint
low limit
Setpoint
high limit
High and low limit of the
Setpoint SP.
The minimum span (S.P.L - S.P.H)
must be greater than 100 digit.
Setpoint
ramp up
Setpoint
ramp down
This parameter specifies the
maximum rate of change of the
Setpoint.
Adjustable in digit/s,digit/min
and digit/hour (see page 27)
When the parameter is
OFF,
this function is disabled and
the new Setpoint is reached
immediately after being
entered.
#sl. d
#sl. u
#S.P. L
#S.P. H
Otherwise, the Setpoint value is
reached according to the con-
figured rate of change.
The new Setpoint value is called
"Target Setpoint". It can be dis-
played by means the parameter
#t.S.P.
(see procedure at page 53).
When Remote Setpoint is con-
figured, we suggest to disable
#sl. u and #sl. d parameters
Off.
1st stored
Setpoint
2nd stored
Setpoint
3th stored
Setpoint
Values of the three Setpoints,
that are activated by mean of
logic inputs, communication
parameters, and keyboard. The
Setpoint active is indicated by
the ú, ù or û green led.
See also page 56.
Remote Setpoint
Slope enable
To enable or disable slopes when
the remote Setpoint is active.
#rs.sl
#S.P. 3
#S.P. 2
#S.P. 1
