4 - Operation

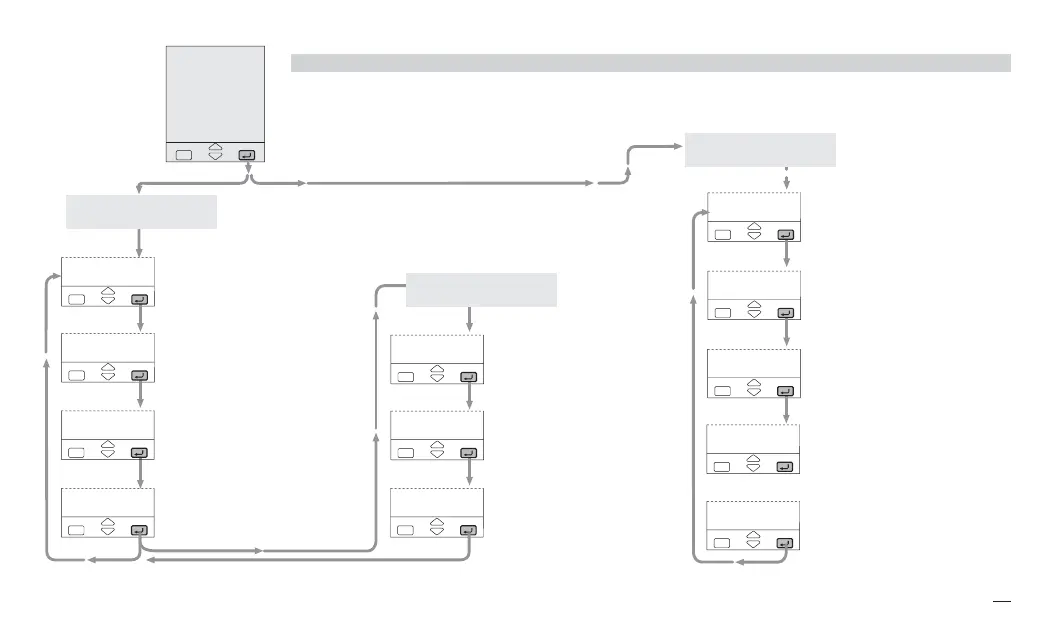

4.4.7 PARAMETERISATION - SERIAL COMMUNICATION MENU
SLAVE address
communication
(if option installed)
0ff / 1…247
SLAVE baud rate
1200/2400
4800
/9600/19200
SLAVE
communication protocol
MbuS / jbuS
Parity
none/EVEn/odd
Index
c= 5
Index
c= 6
Index
c= 7-8
MASTER
enable
no / yeS
MASTER baud rate
1200/2400
4800
/9600/19200
MASTER
communication protocol
MbuS / jbuS
SLAVE address
communication
(if option installed)
0ff / 1…247
SLAVE baud rate
1200/2400
4800
/9600/19200
Communication
protocol
MbuS / jbuS
Parity
none/EVEn/odd
PROFIBUS DP
address
3…124
Serial
communication
menu
RS485 Modbus/Jbus
SLAVE
RS485 Modbus/Jbus
SLAVE + MASTER
RS485 Modbus/Jbus
SLAVE + PROFIBUS DP
Depending on serial communication choosen (see model code on page 5), there are the
following parameters:
