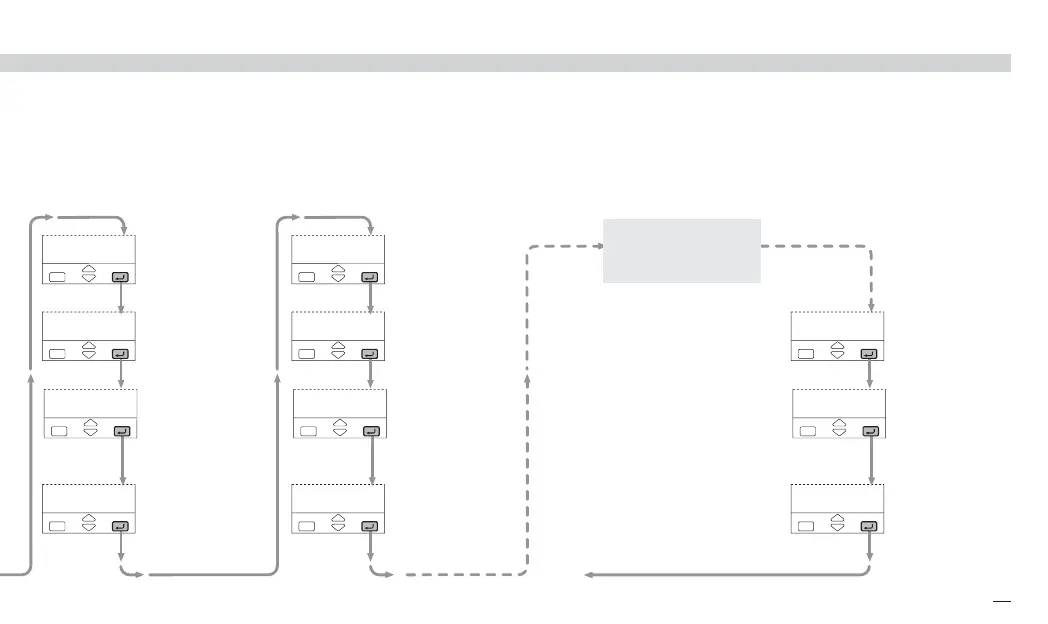

7 - Programmed Setpoint
ti. 0
s.P. 0
OP. 4
OP. 3
ti. 1
s.P. 1
OP. 4
OP. 3
s.P. f
OP. 4
OP. 3
Segment 0
time
0.1…999.9
Unit
Segment 0
Setpoint
whole range
Segment 0
Digital output [1]
Clo = closed
Opn = open
Off = inhibited
Segment 0
Digital output [1]
Clo = closed
Opn = open
Off = inhibited
Segment 1
time
0.1…999.9 Unit
Segment 1
Setpoint
whole range
Segment 1
Digital output [1]
Clo = closed
Opn = open
Off = inhibited
Segment 1
Digital output [1]
Clo = closed
Opn = open
Off = inhibited
End
segment Setpoint
whole range
End segment
digital output[1]
Clo = closed
Opn = open
Off = inhibited
End segment
digital output[1]
Clo = closed
Opn = open
Off = inhibited
Continue for
all the 14 normal
segments
Back to the 1st parameter
