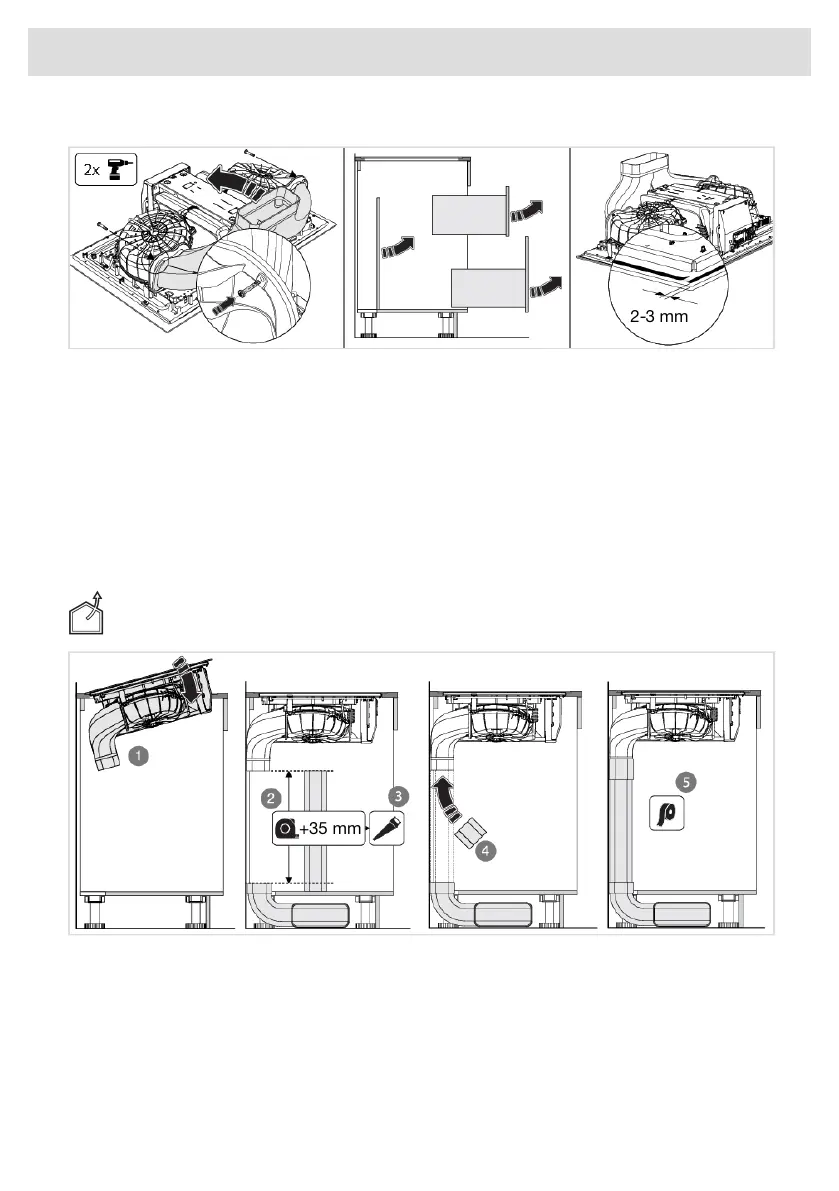

Preparation
1. Hook the Y-duct into the lower edge of both motor housings and tilt the Y-duct up.
2. Attach the Y-duct to the motor housings with the two screws.
3. Remove the drawers and the back panel from the kitchen cabinet.
4. Before installing the appliance into a kitchen worktop, attach the foam gasket supplied with the
appliance to the bottom side of the glass ceramic hob.
5. Remove the protective film from the gasket.
6. Attach the gasket to the bottom side of the glass (2–3 mm away from the edge). The gasket has
to be applied along the entire edge of the glass. The gasket may not overlap in the corners.
When fitting the gasket, make sure it is not damaged by or in contact with any sharp objects.
Connecting to an exhaust duct (outlet)
1. Place the appliance in the cut-out in the worktop.
2. Measure the distance as indicated in the figure and add 35 mm.
3. Saw the flat duct to size.
4. Install the coupling, flat duct, and Naber elbow set.
5. Make the duct airtight with sealing tape.
Go to step 16.
