35
EN
Notices

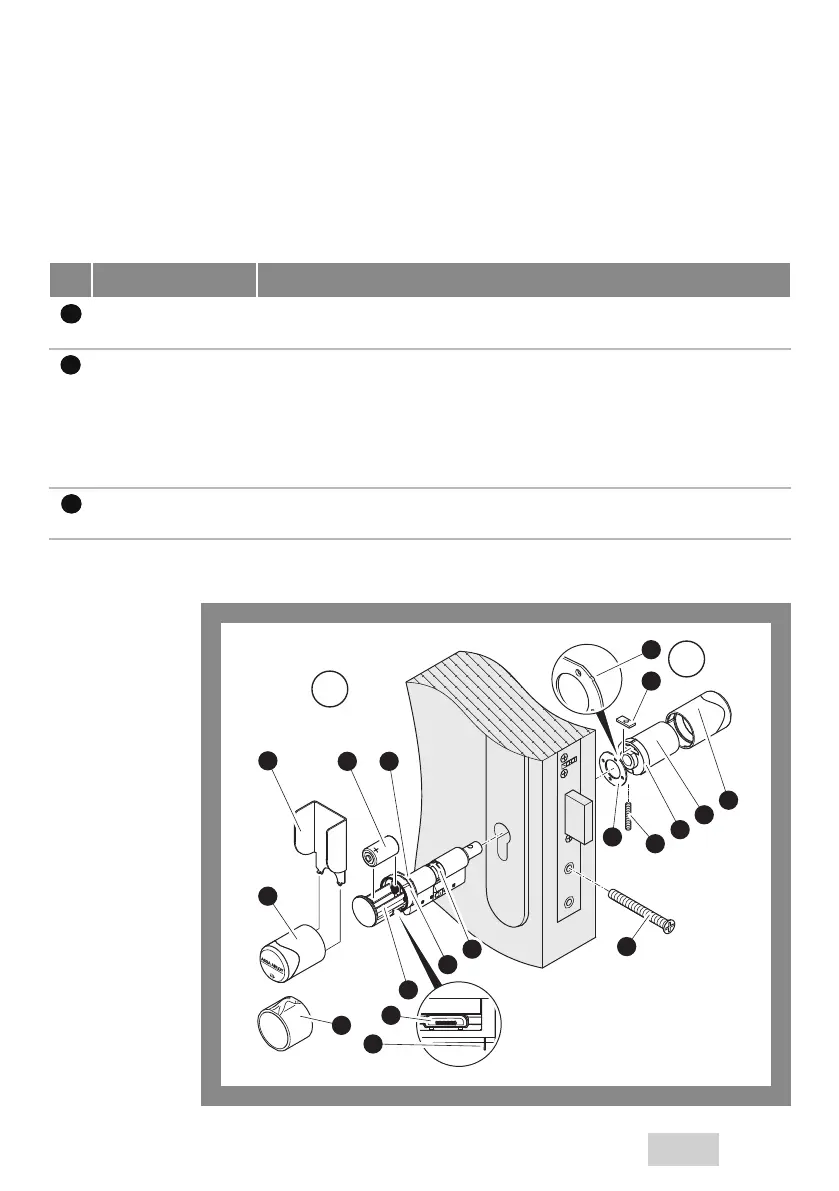

Pic.2 :
Schematic view of
the electronic
knob cylinder
C100V3,
double cylinder
version
1
6
7
8
1
2
3 4
8
11
12
15
9
4
10
I
II
5
14
13
Term Description
13
USB interface The USB interface is used for setting up the cylinder with the PAP tool
(software for configuring door systems) and for firmware updates.
14
Tamper protection
contact (tampering)
With the tamper protection contact (tampering) activated, a signal can be
sent to the primary control unit if the knob on the electronics side has
been removed (e.g. when replacing the battery or during a tampering
attempt). An alarm is also saved in the internal memory and the motor
is run in decoupled state. This alarm is indicated by the red flashing LED
(„Monitoring via tamper protection contact (tampering)“, Seite 39).
15
Turning aid
(optional)
The turning aid is fit over the knob after installation. It makes it easier to
turn the knob and can be purchased as an accessory.
Approved 2017-08-16
