Assa Abloy Aperio C100 V3 - Technical Specifications; Cylinder dimensions

43
EN
Technical specifications
Dimensions

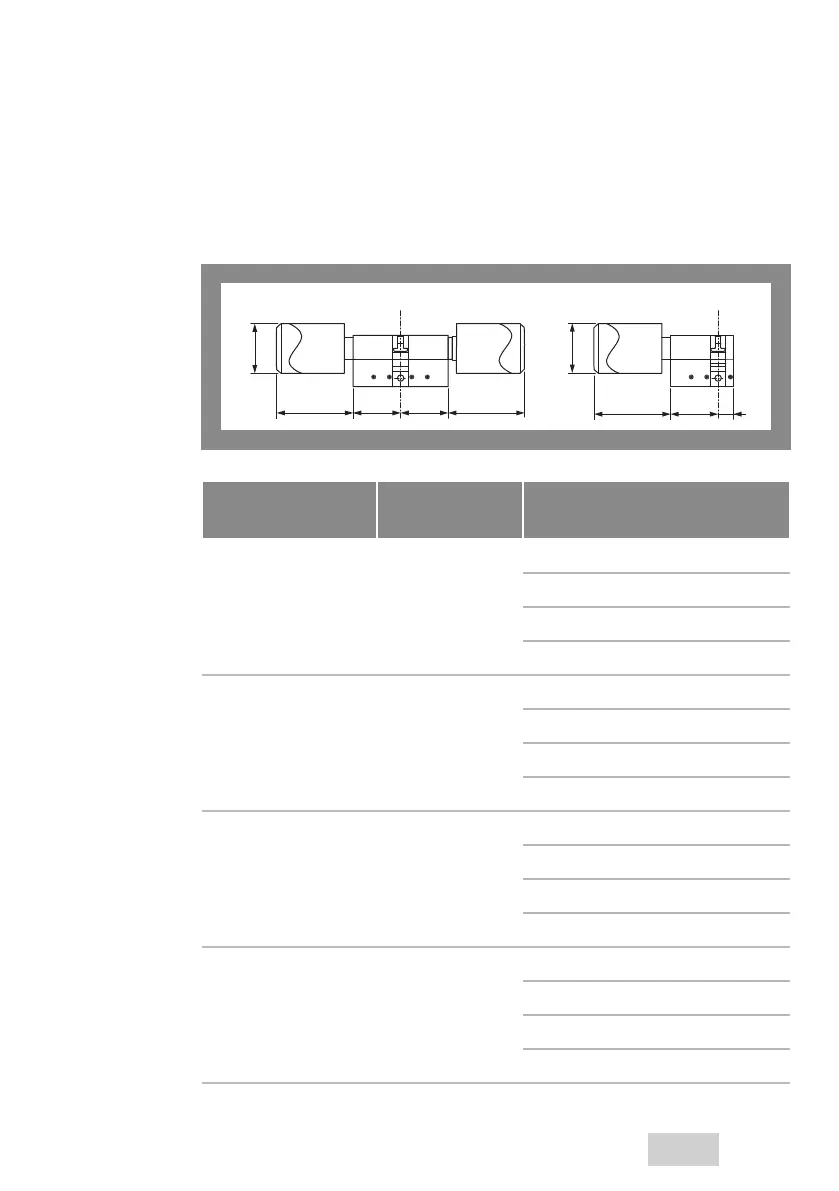

Pic.4:
Double cylinder
and half-cylinder
technical
specifications
Ø D
Ø D
CAB
C
CAE
Door outside: Dimension A, door inside: Measurement B
Identifier Cylinder knob
cover
Dimensions
C100V3
Double cylinder
(Basic version)
Stainless steel A 30 to 120 mm
B 30 to 120 mm
C 49 mm
ø
D
32 mm
C100V3
Double cylinder
(VdS version with
special intrusion
protection)
Stainless steel A 30 to 80 mm
B 30 to 120 mm
C 49 mm
ø
D
32 mm
C100V3
Half-cylinder
(Basic version)
Stainless steel A 30 to 85 mm
C 49 mm
ø
D
32 mm
E 9.5 mm
C100V3
Half-cylinder
(Server Rack version)
Stainless steel A 30 mm
C 49 mm
ø
D
32 mm
E 9.5 mm
Technical specifications
Approved 2017-08-16
