Assa Abloy Yale 5300LN Series User Manual

5322LN
Page 10
5300LN Series Parts & Service Manual
6.2
5.
2
17
.2
4
1.
2
1.
1
8
9
10.1
3
19
2
13
14
15
17
1.
2
16
1.
1
or
or
12

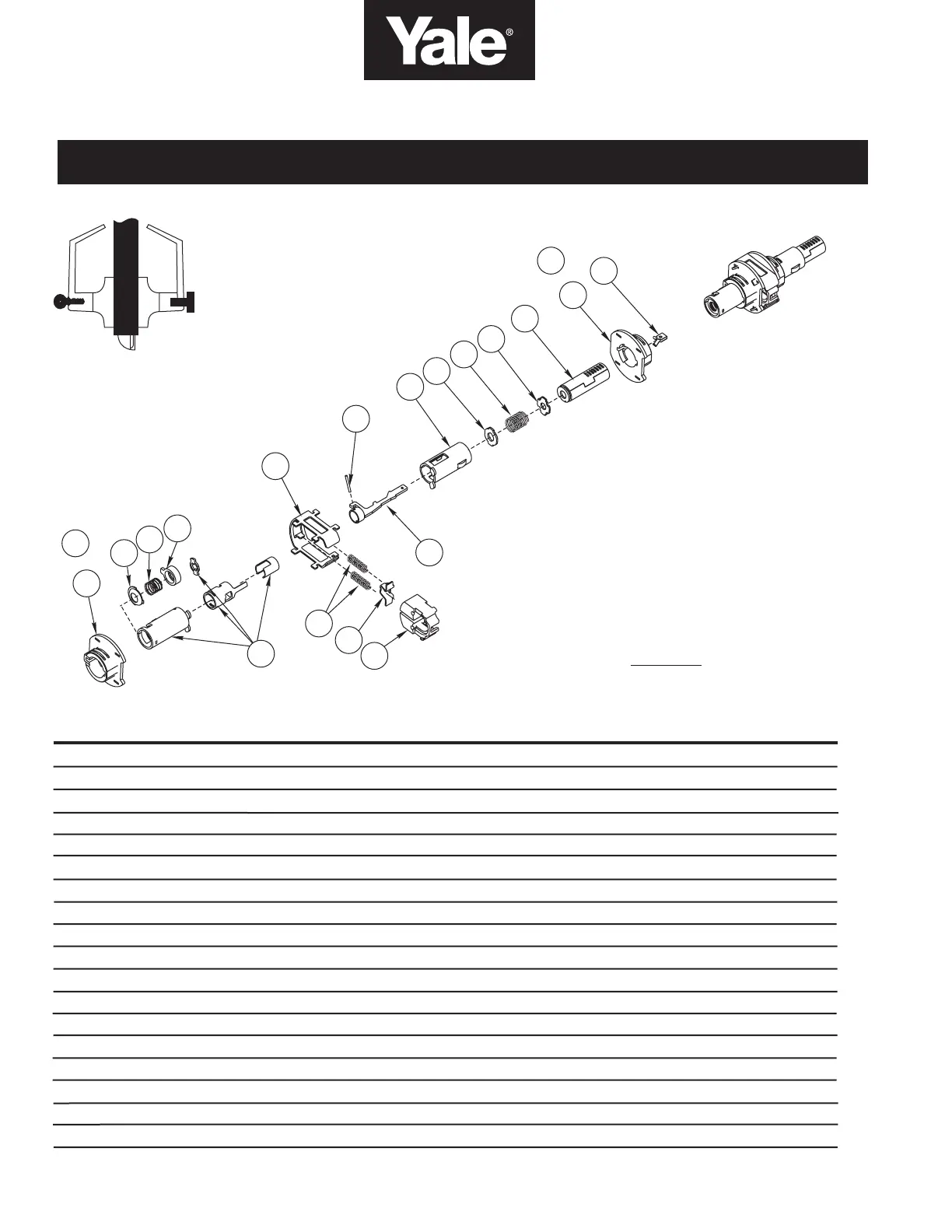

Dormitory Lock F90
Sold as complete lock-
body assembly only.
1.1 Flange (Standard Door) 2 -
1.2 Flange (Thick Door) - 2
2Spindle - Inside 1 1
3Frame 11
4 Spring - Retractor 2 2
5.2 Catch 1 1
6.2 Retractor #2 1 1
8Seat, Spring 1 1
9 Spring, Pawl 1 1
10.1 Pawl 1 1
12 Stem Assembly 1 1
13 Bank, Spring 1 1
14 Spring, Stem 1 1
15 Washer, Connecting 1 1
16 Speed Clip 1 1
17 Adjusting Tube 1 1
17.2 Spindle Assembly, Outside 1 1
19 Stop Pin 1 1
ITEM DESCRIPTION DOOR DOOR
Assembly #
*14-5322-0901-048
1-3/8" to 1-3/4"
Assembly #
*14-5322-0902-048
2" to 2-1/4"
Q
UANTITY
August 2003
