Assa Abloy Yale 5300LN Series - Lockbody Assemblies; 5301 LN Passage Lockset F75

September 2003
5301LN
Page 4

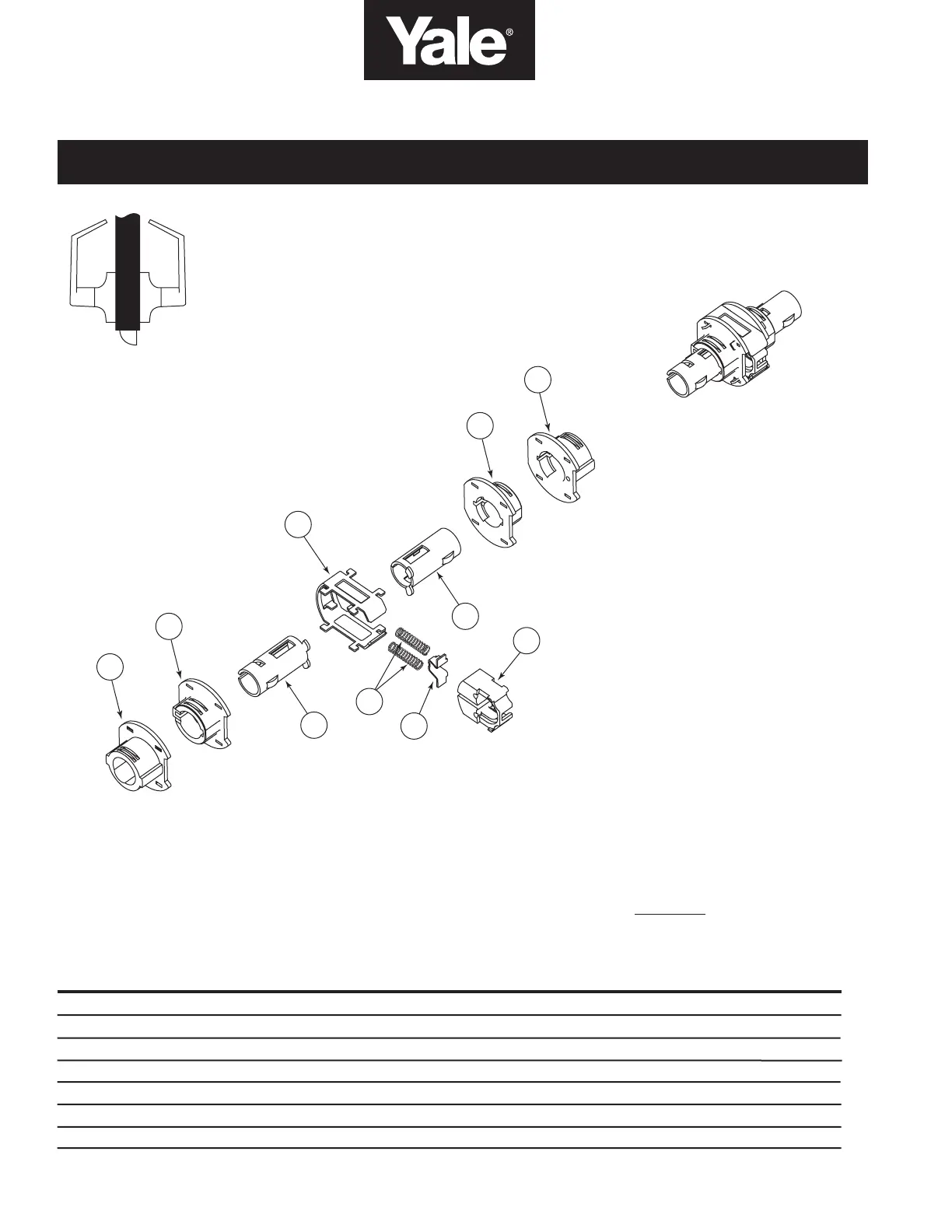

5300LN Series Parts & Service Manual
1.1 Flange (Standard Door) 2 -
1.2 Flange (Thick Door) - 2
2Spindle - Inside 2 2
3Frame 11
4 Spring - Retractor 2 2
5.1 Locator, Retractor Spring 1 1
6.1 Retractor #1 1 1
ITEM DESCRIPTION DOOR DOOR
1.2
1.1
2
4
5.1
6.1
3
2
1.1
1.2
Sold as complete lockbody
assembly only.
Passage Lockset F75
Assembly #
*14-5301-0701-048
1-3/8" to 1-3/4"
Assembly #
*14-5301-0702-048
2" to 2-1/4"
Q
U
ANTITY
