Assa Abloy Yale 5300LN Series User Manual

September 2003
5307LN
Page 7

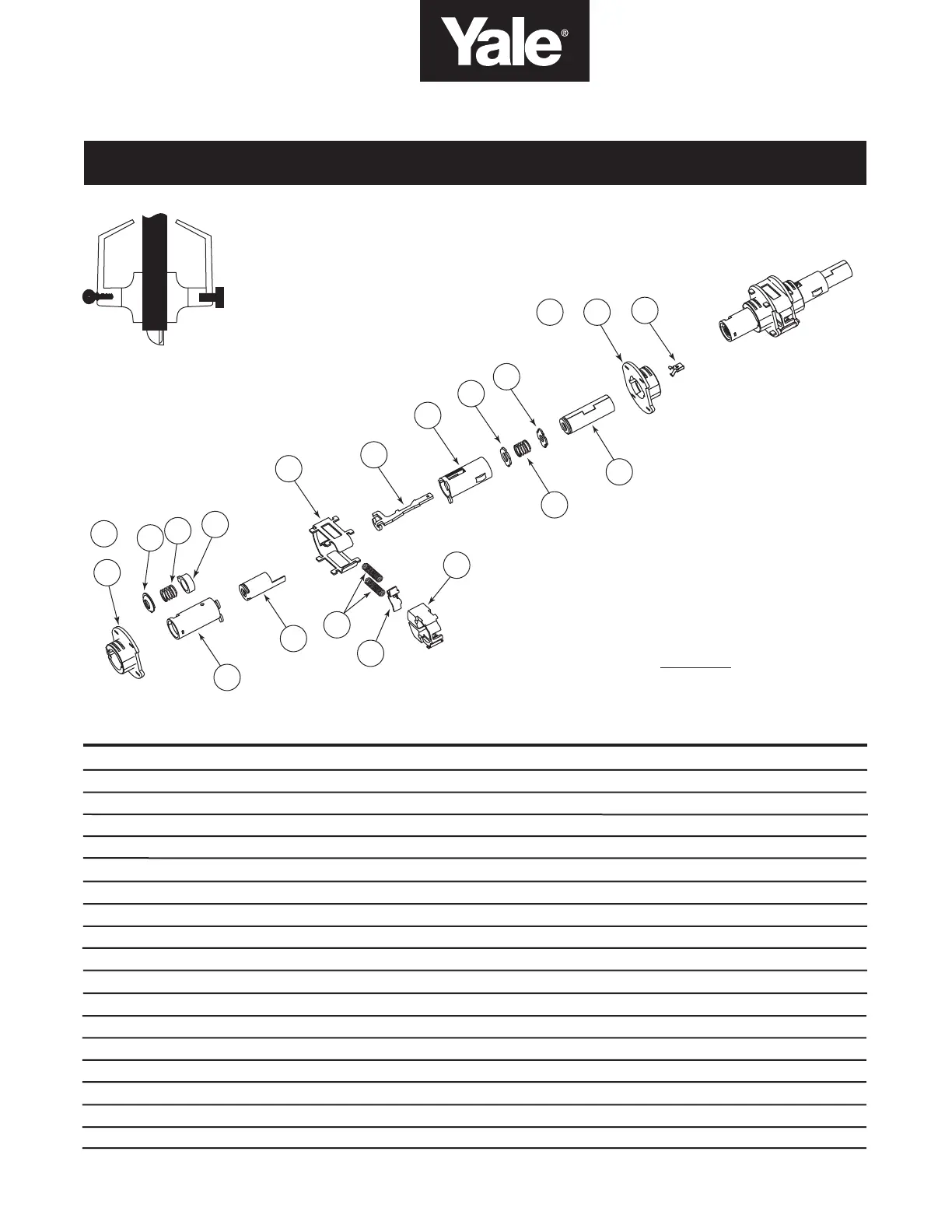

5300LN Series Parts & Service Manual
1.2
1.1
or
7
11.2
8
9
10.1
4
5.2
6.2
3
12
2
13
15
14
17
16
1.21.1
or
Sold as complete lockbody
assembly only.
Entrance Lock F81/82
1.1 Flange (Standard Door) 2 -
1.2 Flange (Thick Door) - 2
2Spindle - Inside 1 1
3Frame 11
4 Spring - Retractor 2 2
5.2 Catch 1 1
6.2 Retractor #2 1 1
7 Spindle, Outside 1 1
8Seat, Spring 1 1
9 Spring, Pawl 1 1
10.1 Pawl 1 1
11.2 Tube, Release 1 1
12 Stem Assembly 1 1
13 Bank, Spring 1 1
14 Spring, Stem 1 1
15 Washer, Connecting 1 1
16 Speed Clip 1 1
17 Adjusting Tube 1 1
ITEM DESCRIPTION DOOR DOOR
Assembly #
*14-5307-0701-048
1-3/8" to 1-3/4"
Assembly #
*14-5307-0702-048
2" to 2-1/4"
QUANTITY
