Assa Abloy Yale 5300LN Series User Manual

5329LN
Page 12

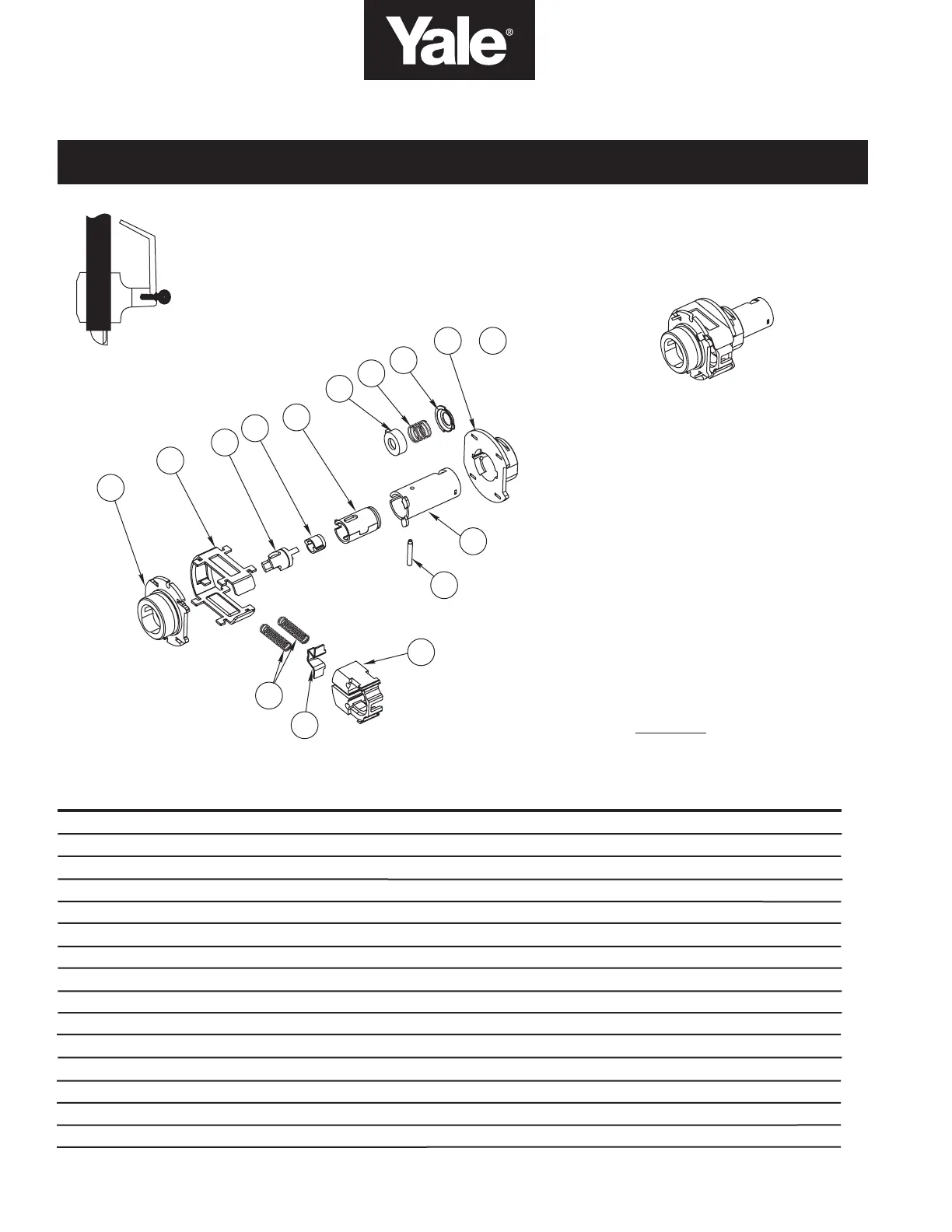

5300LN Series Parts & Service Manual
1.11.2
or
8
9
10.1
18
20
21
7
19
3
22
6.1
5.
1
4
Keyed
Lever x Blank Plate
Sold as complete lockbody
assembly only.
1.1 Flange (Standard Door) 1 -
1.2 Flange (Thick Door) - 1
3Frame 11
4 Spring - Retractor 2 2
5.1 Locator, Retractor Spring 1 1
6.1 Retractor #1 1 1
7 Spindle, Outside 1 1
8Seat, Spring 1 1
9 Spring, Pawl 1 1
10.1 Pawl 1 1
18 Release Tube 1 1
19 Stop Pin 1 1
20 Cam Tube Driver 1 1
21 Cam Tube 1 1
22 Flange Assembly, Outside 1 1
ITEM DESCRIPTION DOOR DOOR
Assembly #
*14-5329-0001-048
1-3/8" to 1-3/4"
Assembly #
*14-5329-0002-048
2" to 2-1/4"
Q
UANTITY
August 2003
