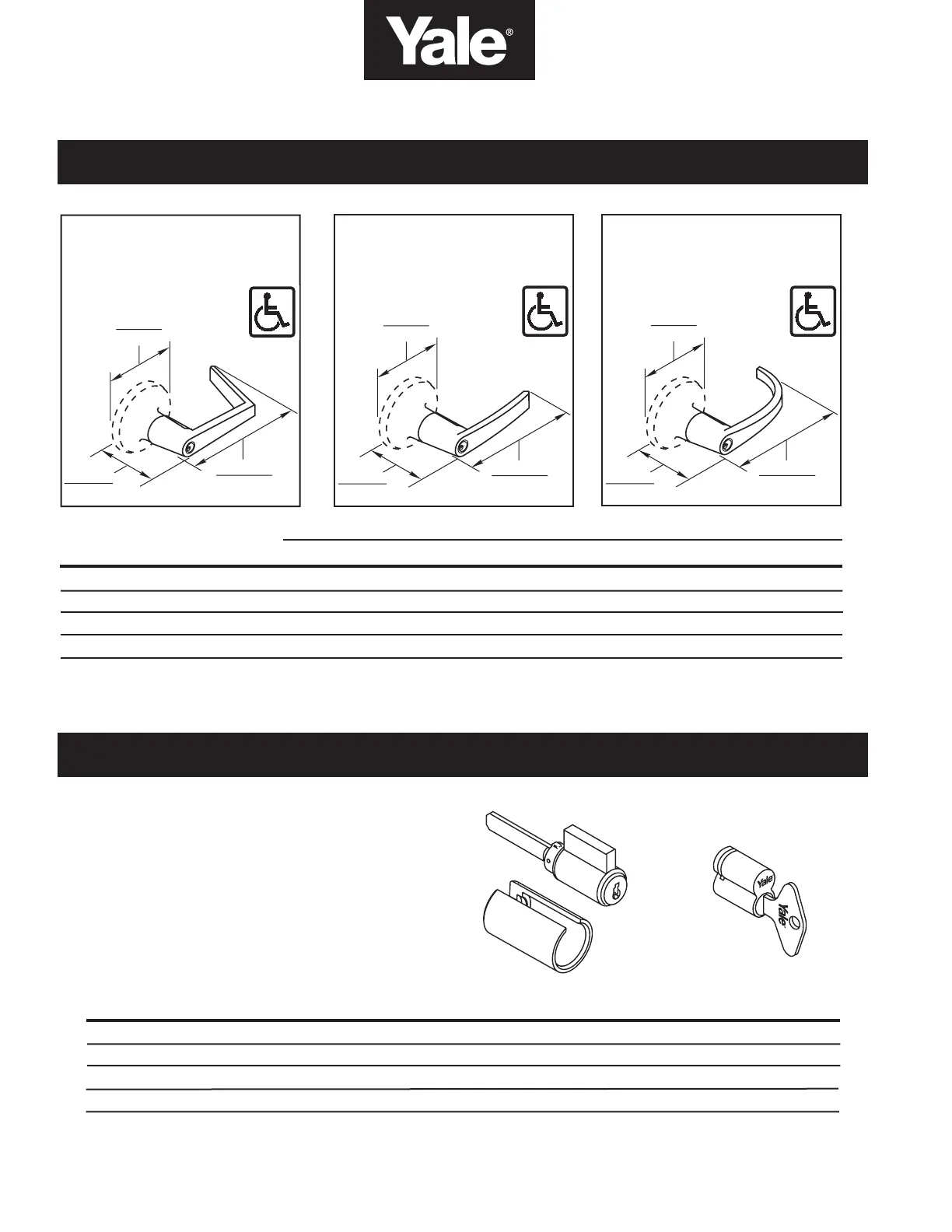

5300LN Series Parts & Service Manual
Cylinder/Button 14-5300-6039-FIN* 14-5305-6056-FIN* 14-5305-6054-FIN*
Emergency Key Hole 14-5302-6058-FIN* 14-5302-6585-FIN* 14-5302-6062-FIN*
Plain 14-5301-6040-FIN* 14-5301-6902-FIN* 14-5301-6054-FIN*
Plain (Patio Function) 14-5303-6060-FIN* 14-5303-6067-FIN* 14-5303-6066-FIN*
*See chart on Page 2 for 3-digit designation for finish required.
AU MO PB
3-1/2"
(89mm)
5"
(127mm)
3-1/2"
(89mm)
Part Number (Lever Only)
Conventional 6-Pin 1-3/8” - 1-3/4” door 1802 1210
Conventional 6-Pin 2” - 2-1/4” door 1802L 1210
High Security 6-Pin 1-3/8” - 1-3/4” door 5802 5210
High Security 6-Pin 2” - 2-1/4” door 5802L 5210
*Specify keyway and finish, see Page 2.
**The 1802 cylinder requires an adapter sleeve to fit in the 5300LN lockset.
Application List No.* List No.*
Augusta
Lever: Cast Solid
Rose: Wrought
brass or
bronze
AU
3-1/2"
(89mm)
5-1/2"
(140mm)
3-1/2"
(89mm)
Pacific Beach
Lever: Cast Solid
Rose: Wrought
brass or
bronze
PB
3-1/2"
(89mm)
4-5/8"
(117mm)
3-1/2"
(89mm)
Monroe
Lever: Cast Solid
Rose: Wrought
brass or
bronze
MO
** 9078 Cylinder Sleeve
CYLINDERS & REMOVABLE CORES
Cylinders and removable cores are
constructed of brass and come
with two brass or nickel-silver keys.
Standard Cylinder
Removable Core
