Assa Abloy Yale 5300LN Series User Manual

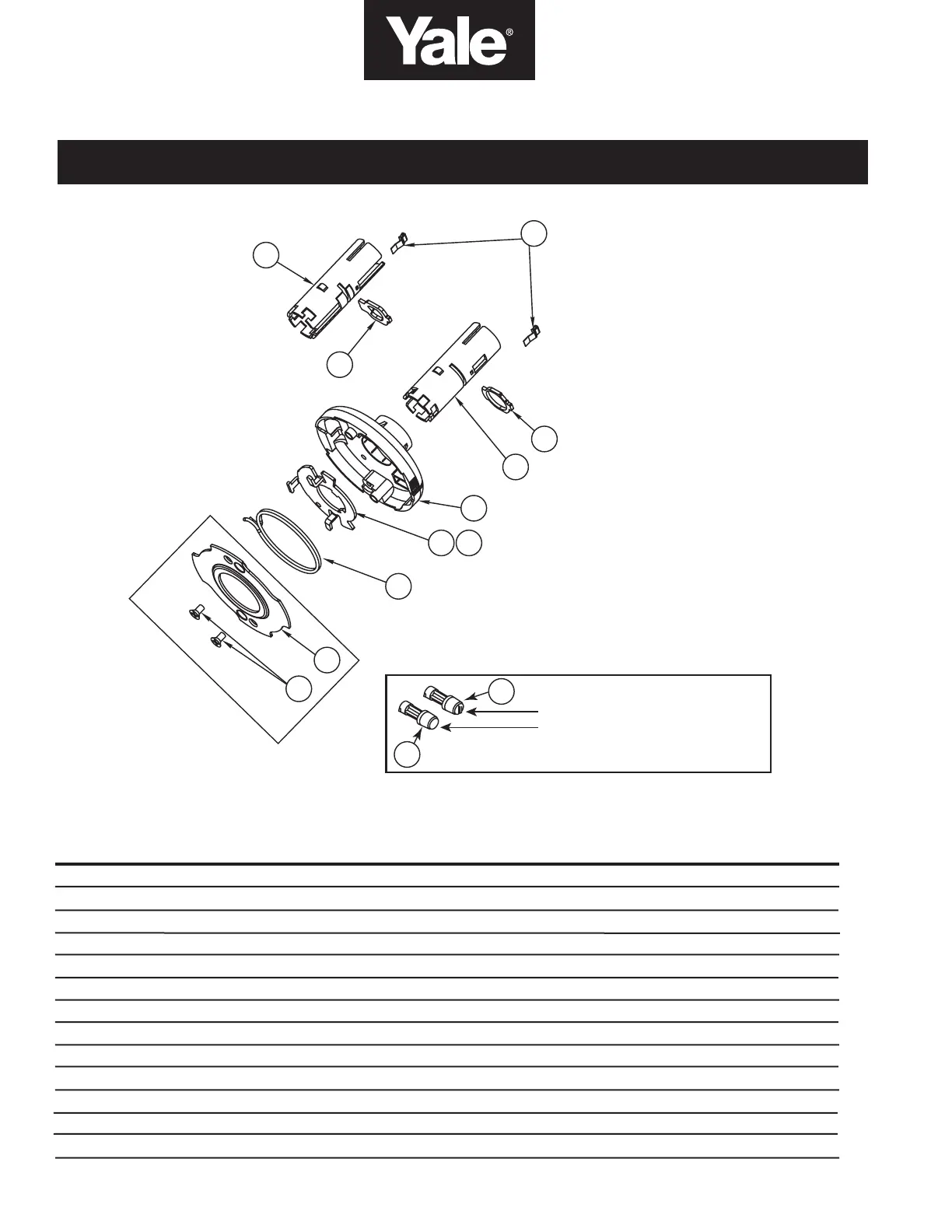

INSIDE ROSE ASSEMBLY
Page 14 5300LN Series Parts & Service Manual
1 14-5303-1058 Retainer Spring 1 1
2 14-5303-1065 Outside Retainer Plate 1
3Outside Shank 1
4 Rose Support 1 1
5Outside Stop Plate 1
6 14-5300-1021 Torsion Spring 1 1
7Inside Shank 1
8 81-3812-0407 Screw, #8-32, UNC-2B x 11/32 PFHMS 2 2
9 14-5303-1165 Inside Retainer Plate 1
10 Inside Stop Plate 1
11 14-5301-1911 Inside Rose Plate 1 1
13 14-5402-0901-FIN Pushbutton Assembly (Specify Finish, See Page 2)
14 14-5407-0901-FIN Turnbutton Assembly (Specify Finish, See Page 2)
ITEM PART NO. DESCRIPTION QUANTITY QUANTITY
All other functions
Assembly#
14-5301-0705
3
2
7
9
4
5 10
6
11
8
1
Used on 5307LN
Used on 5302LN, 5303LN and 5322LN
14
13
5321LN, 5329LN
Assembly#
14-5321-0003
August 2003
