Assa Abloy Yale 5300LN Series - 5321 LN Communicating Lock F80

September 2003
5321LN
Page 9
5300LN Series Parts & Service Manual
1. 2
1.
1
8
9
10.1
19
20
21
3
7
18
4
5.1
6.1
20
21
19
18
2
1.1
1.2
8
9
10.1

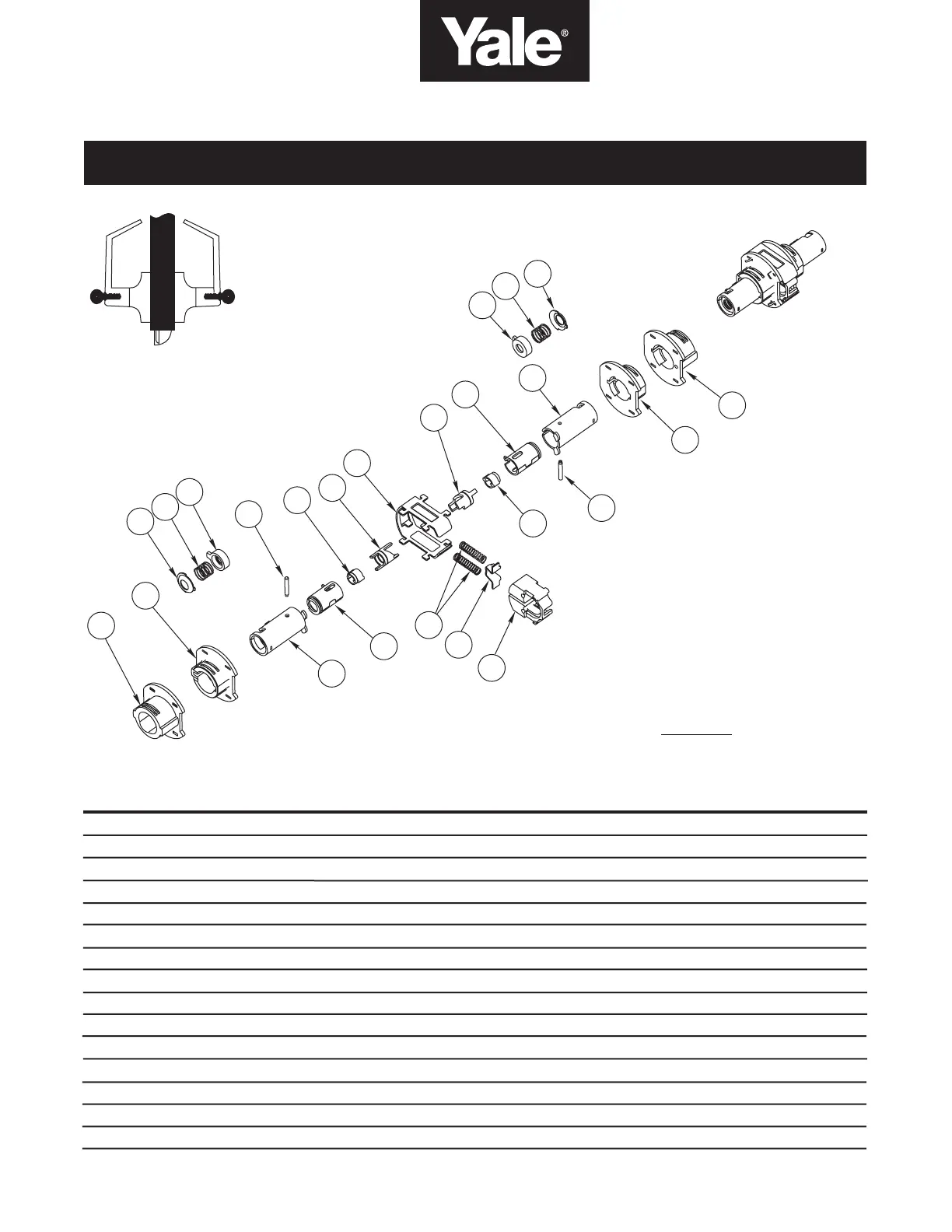

Communicating Lock F80
Sold as complete lock-
body assembly only.
1.1 Flange (Standard Door) 2 -
1.2 Flange (Thick Door) - 2
2Spindle - Inside 1 1
3Frame 11
4 Spring - Retractor 2 2
5.1 Locator, Retractor Spring 1 1
6.1 Retractor #1 1 1
7 Spindle, Outside 1 1
8Seat, Spring 2 2
9 Spring, Pawl 2 2
10.1 Pawl 2 2
18 Release Tube 2 2
19 Stop Pin 2 2
20 Cam Tube Driver 2 2
21 Cam Tube 2 2
ITEM DESCRIPTION DOOR DOOR
Assembly #
*14-5321-0001-048
1-3/8" to 1-3/4"
Assembly #
*14-5321-0002-048
2" to 2-1/4"
Q
UANTITY
