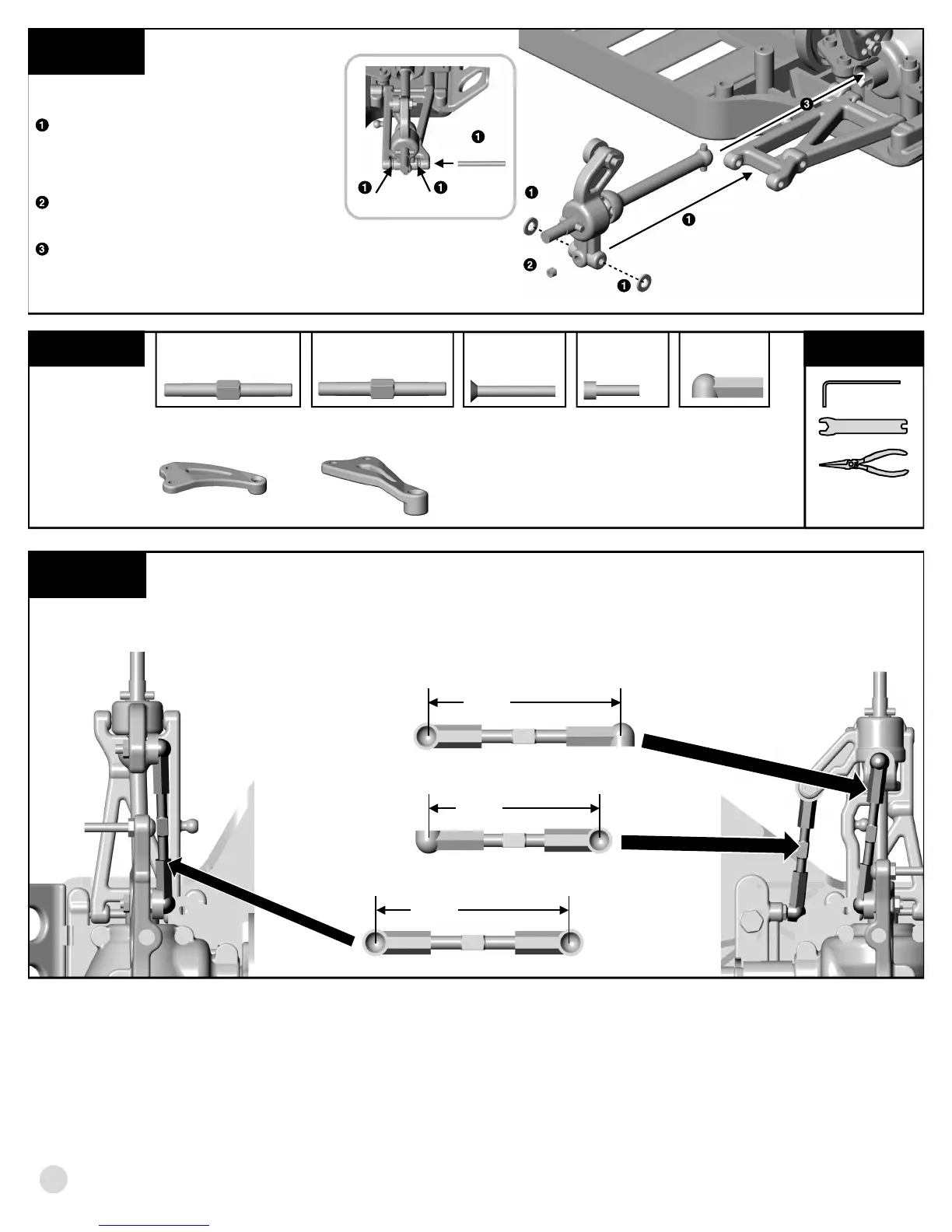

step 6
ATTACH REAR HUB CARRIER
ASSEMBLY
Place the left hub carrier between the arm
holes as shown and add two #4187 spacers
where shown. Insert the #3866 rear outer
hinge pin through the arm and hub carrier.
Thread in the #3862 5-40 set screw into the
hub carrier. Tighten down the set screw,
locking the hinge pin in place.
DO NOT
OVERTIGHTEN!
Insert the universal dogbone into the slots
of the outdrive hub.
Now install the hub carrier assembly for the
right side.
4
4187
4187
4187
3866
3862
4187
BAG F
REMOVE THESE
PARTS FOR:
Steps 1-2
TOOLS USED
TEAM & F.T. KITS ONLY
1356, qty 6
blue titanium turnbuckle
3879, 3880*, qty 2
front chassis brace
3879, 3880*, qty 2
rear chassis brace
6274, qty 12
ball cup
1:1
6923, qty 4
4-40 x 3/4 screw
1:1
6924, 6860*, qty 8
4-40 x 3/8 screw
1:1
RACER KIT ONLY
3867, qty 6
steel turnbuckle
1:11:1
1/16", 3/32"
LEFT REAR HUB
CARRIER SHOWN
step 1
TURNBUCKLE ASSEMBLY
Twist the #6274 ball cups onto the #1356 blue titanium
turnbuckle or #3867 steel turnbuckle until you get the dimension
shown for each part. Assemble all six turnbuckles.
Snap all six turnbuckles into place where shown, making sure
that all the universal bones are in the slots of the outdrive hubs.
62746274
1356 or 3867
front camber (2 sets)
1.53 in
62746274
1356 or 3867
steering (2 sets)
62746274
1356 or 3867
rear camber
link (2 sets)
43.7 mm
38.8 mm
1.72 in
FRONT
REAR
1.72 in
43.7 mm
1
2
To Next Page
