Associated Electrics TC3 - Rear Input Shaft and Transmission Assembly; Rear Input Shaft Assembly; Lower Transmission Case Assembly

9

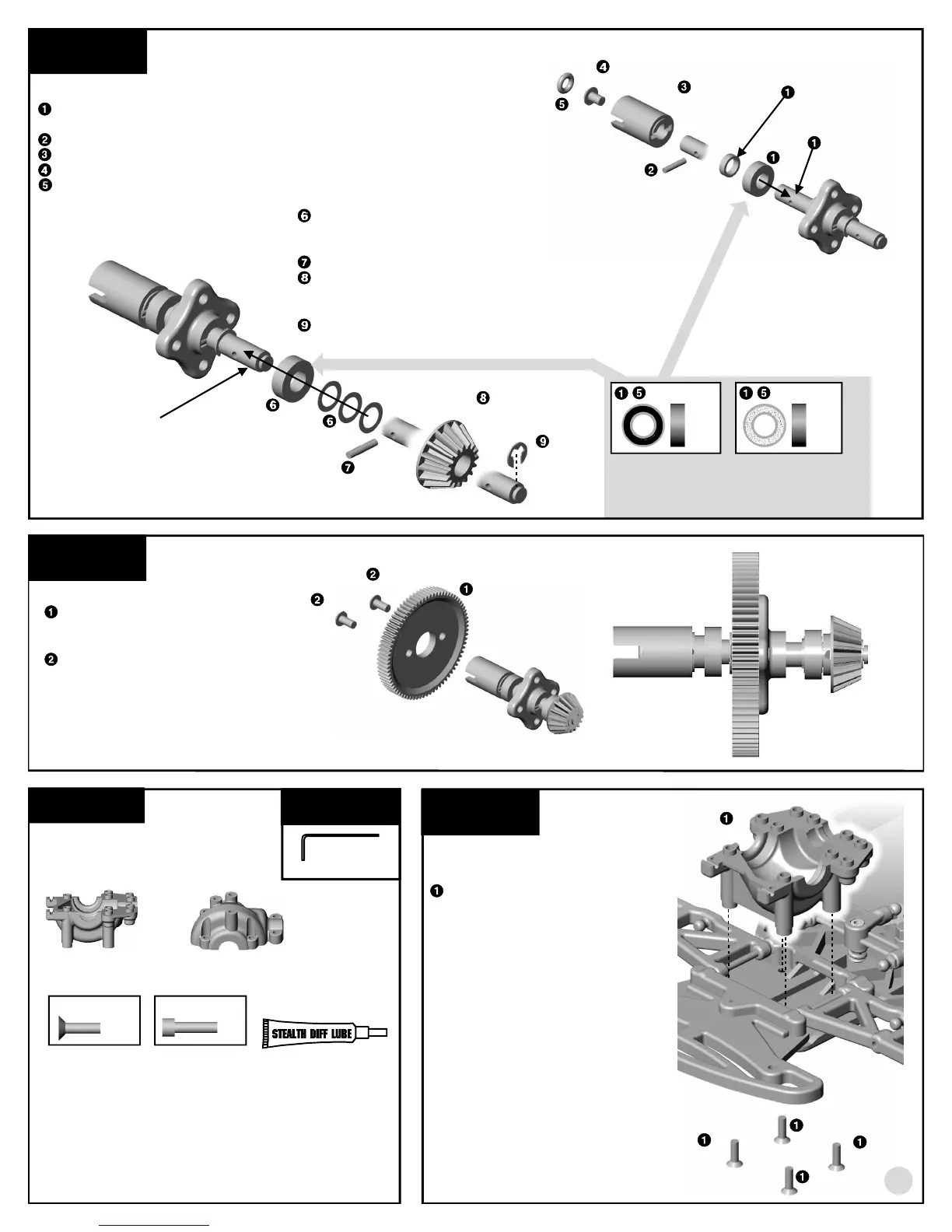

step 11
Slide one #3977 or #6906 bearing and
three #3911 input shaft shims onto the
#3915 rear input shaft.
Install and center a #3919 dowel pin into the input shaft.
Slide a #3914 drive pinion onto the end of the input shaft.
Make sure the dowel pin aligns perfectly with the slot
in the pinion.
Add a #3919 small E-clip.
RACER KIT ONLY
3977, qty 2
3/16 x 3/8
bearing, rubber sealed
TEAM & F.T. KITS ONLY
6906, qty 2
3/16 x 3/8
bearing, PTFE sealed
1:11:1
3911 shims
3915 rear
input shaft
3919 pin
3914 drive pinion
3917 drive cup
6920
REAR INPUT SHAFT ASSEMBLY
Slide one #3977 or #6906 bearing and one #3911 input shaft
spacer onto the #3915 rear input shaft.
Install and center one #3919 dowel pin into the input shaft.
Slide a #3917 drive cup onto the input shaft.
Tighten it down with one #6920 screw.
Slide in a #5407 O-ring into the #3917 drive cup.
3919
3919 pin
3915 rear input shaft
3911 spacer
5407
step 12
REAR INPUT SHAFT ASSEMBLY
Slide the #3922 spur gear over the
drive cup and align it on the #3917
gear adapter.
Tighten down the spur gear with
two #6288 screws.
3922 spur gear
6288
6288
assembled
PLEASE COMPARE
YOUR ASSEMBLY
CAREFULLY
BAG C
REMOVE THESE
PARTS FOR:
Steps 13-15
TOOLS USED
1:1
6292, 6934*, qty 8
4-40 x 3/8 screw
1:1
6924, 6860*, qty 6
4-40 x 3/8 screw
3910, qty 2
lower transmission case
3910, qty 1
upper transmission case
1/16, 3/32
6591, qty 1
Stealth diff lube
FRONT TRANSMISSION
ASSEMBLY, LOWER HALF
Attach the #3910 lower
transmission case to the
chassis with four #6292
screws.
step 13
3910
6292,
6934*
6292,
6934*
6292,
6934*
6292,
6934*
