Associated Electrics TC3 - Chassis Brace and Shock Preparation; Installing Chassis Brace

WHERE TO FIND THE CHASSIS BRACE I.D.
step 1
6464
TRIM SHOCK PISTON
Burrs on the #6465 shock
piston interfere with smooth
shock action within the shock
body. To remove from tree
without creating burrs, twist up,
not down. Remove four #2
shock pistons.
Remove remaining burrs
carefully with a hobby knife.
burr
wrong
right
VC FOAM AND BOBBIN
Soak the #8456 VC foam
with #5423 40wt shock oil
and install it onto the
#8456 VC bobbin.
5423
OIL
8456
foam
8456
bobbin
assembled
step 2
6924,
6860*
6924,
6860*
6924,
6860*
3879,
3880*
FACTORY TEAM KIT ONLY
3963*, qty 4
threaded macro shock body
blue

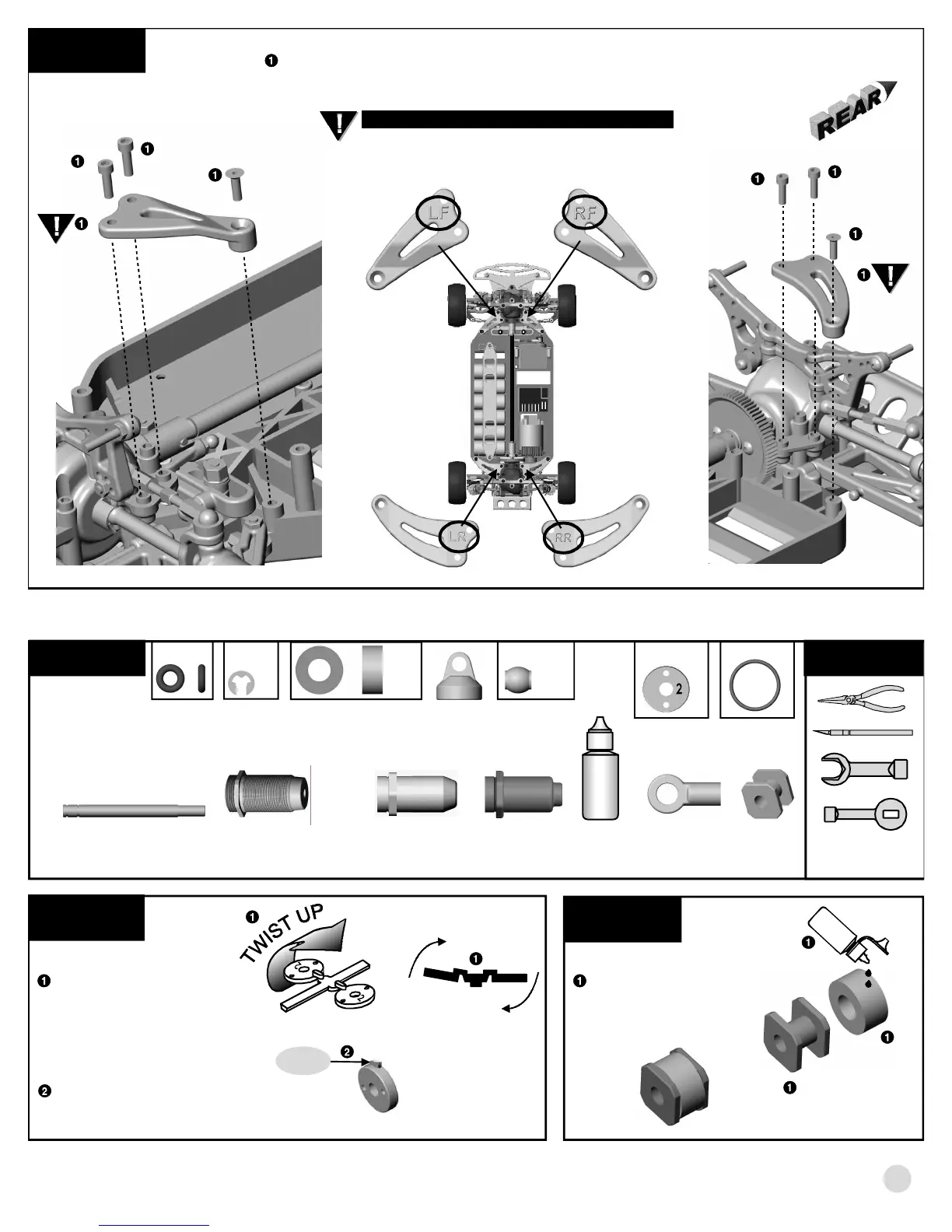

Each chassis brace has a molded identification
that indicates where it goes on the car, as shown
below.
step 2
INSTALLING CHASSIS BRACE
Mount the #3879 (3880*) left front and left rear chassis braces with two
#6924 (6860*) screws and one #6923 screw for each brace as shown.
Repeat step for the right side.
2
6924,
6860*
6923
3879,
3880*
6923
LR
LF
BAG G
REMOVE THESE
PARTS FOR:
Steps 1-4
TOOLS USED
15
5407, qty 8
red O-ring
6465, qty 4
shock piston #2
5423, qty 1
40 wt
silicone oil
1:1
1:1
6469, qty 4
large O-ring
6299, qty 8
E-clip
1:1
1:1
TEAM KIT ONLY
8450B, qty 4
macro shock body
blue
8844, 3964*, qty 4
shock shaft
8456, qty 4
VC foam
1:1
8456, qty 4
VC bobbin
6428, qty 4
shock cap
7217, qty 4
shock pivot ball
7217, qty 4
shock eyelet
RACER KIT ONLY
8458, qty 4
macro shock
composite body
left front
right front
right rear
left rear
(car shown
fully assembled)
1:1
FRONT
REAR
