Electrical Connection LDM41A and LDM42A Manual
Page 16 ASTECH GmbH
5 Electrical Connection
5.1 Connector Terminal
Located on the back cover is a connector terminal. A 12-pole round-type
(flange-mount) series 723 connector from Binder has been selected for this
purpose. It is sealed against the casing to comply with IP 65 requirements. This
connector type guarantees optimized screening and a high IP degree.
The required counterpart is a cable jack (series 423 from Binder) with grading
ring.
Interface cables with different length are available (standard 2 m, optionally 5
or 10 m). Under RS232 C or RS422 norm it’s possible to extend the length with
a high quality screened cable.

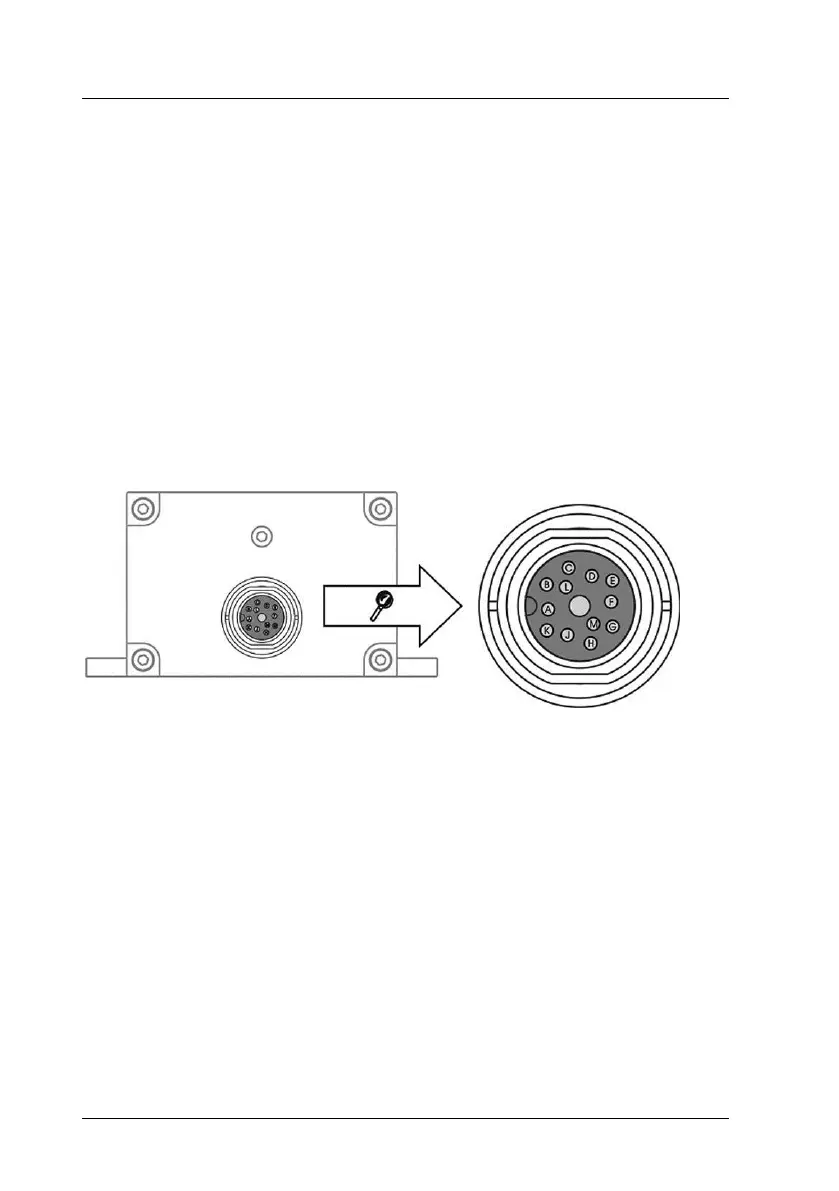

Figure 5 : View of LDM41A and LDM42A pole assignments
