5.2 Interface Cable
Caution: The cable end is exposed! The user is responsible to take
precautions that will prevent any kind of shorts! The cable shield has
to be connecting to earth with low resistance.
Figure 6 : Interface cable with connector

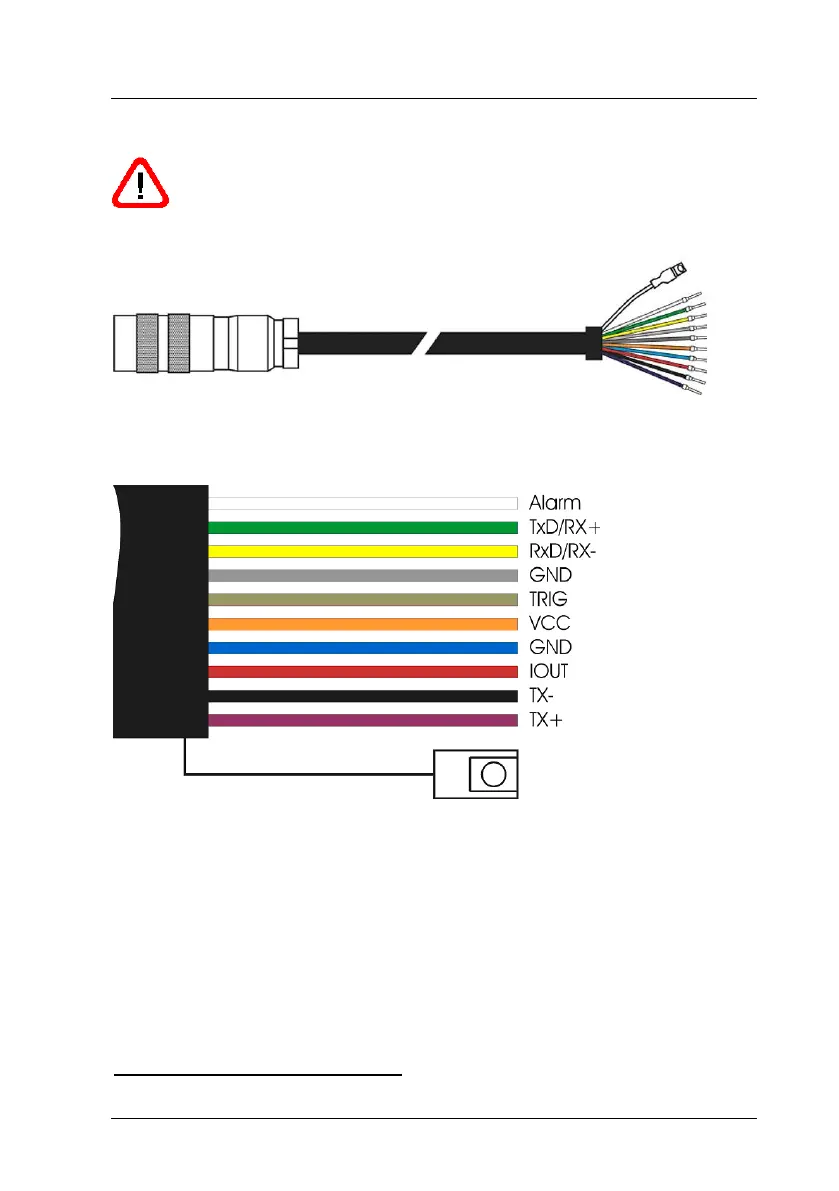

Interface cable wiring assignments are as follows
:
Figure 7 : Interface cable color codes
TRIG is not connected in devices with internal heating (LDM41A-h and LDM42A-h)
