Astoria AEP - Machine Illustrations and Control Panels

USER manual
ENGLISH
49 of 260

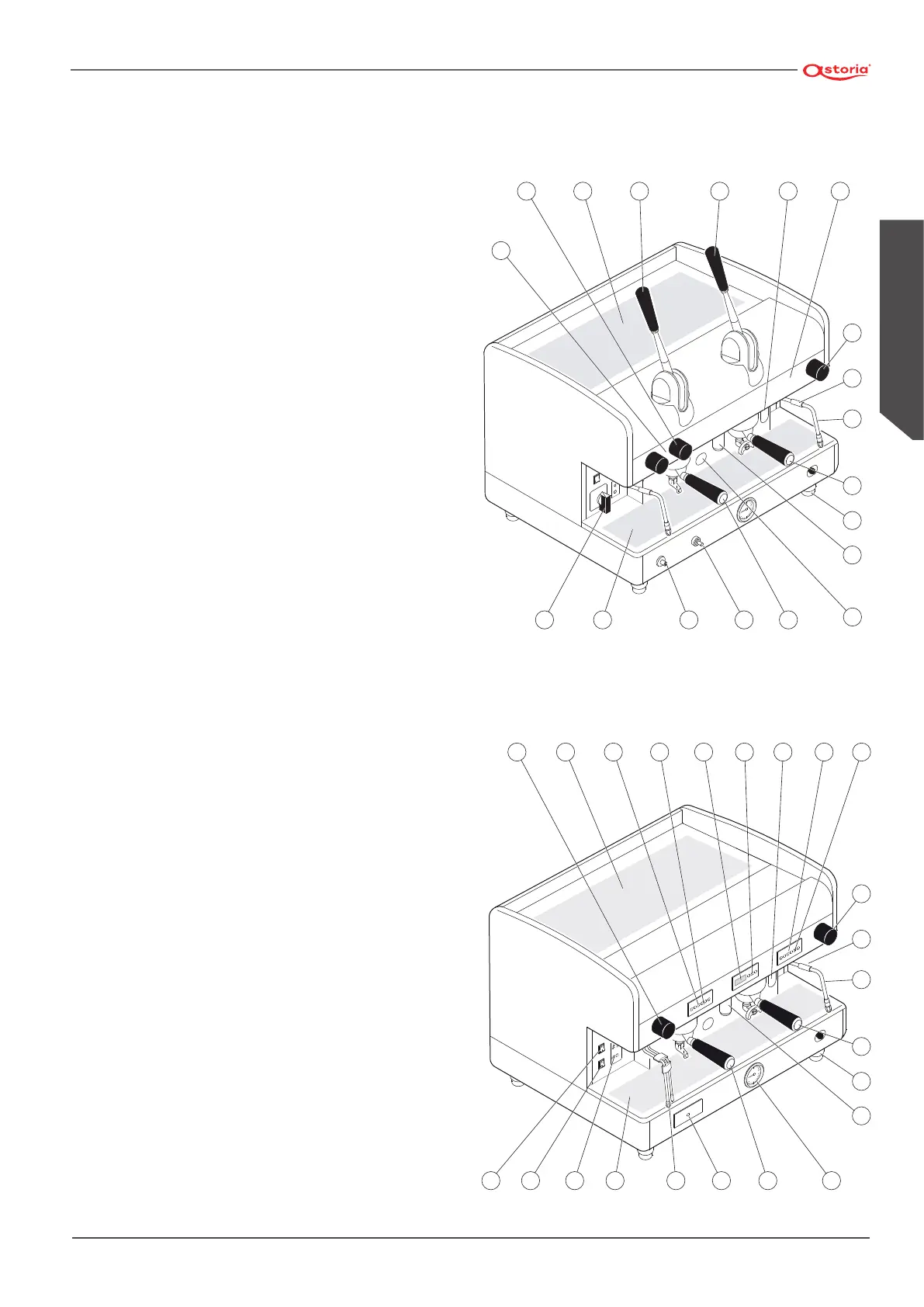

2.5 Illustration of the machine
1. Cup heater surface.
2. Lever units.
3. Boiler water optical level (**).
4. Pressure gauge.
5. Steam knob.
6. Anti-scalding protection.
7. Steam nozzle.
8. 2-Cup lter holder.
9. Adjustable foot.
10. Hot water nozzle.
11. Gas burner window (*).
12. 1-Cup lter holder.
13. Gas safety (*).
14. Gas ignition button (*).
15. Cup-rest grid.
16. ON switch.
17. Machine powered warning light.
18. Hot water knob.
19. Manual dispensing push-button panel (AEP).
20. Push-button panel (SAE).
21. Display.
22. Manual and water dispensing push-buttons (DISPLAY).
23. Auto-steamer push-button panel (*).
24. Auto-steamer spout (*).
25. Machine/cup warmer warning lights.
26. Cup heater switch.
(*) Optional device.
(**) In some versions the optical level is replaced by
a green warning light.
18 1 19 3 19 20
5
6
7
8
9
10
241626 25 15 12 423
20 21 22
AL version
18
17
1 2 3 4
5
6
7
8
9
10
11
1416 15 1213
2
Version AEP - SAE - DISPLAY
