Chapter 3 Analog Output Settings (ANALOG OUTPUT)
12

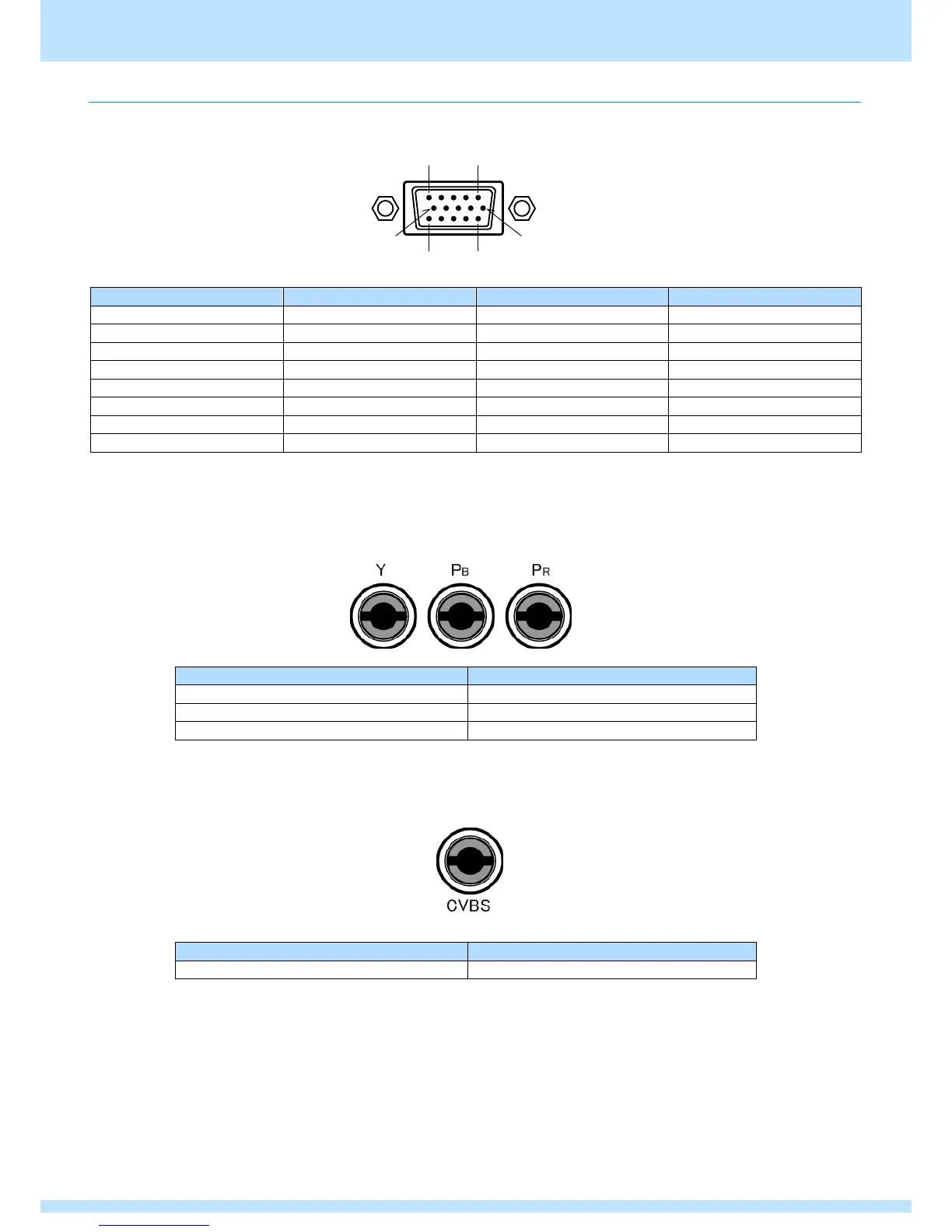

3.1.3 Connector and pin assignment
VGA (D-SUB) output
Pin No.
Signal
Pin No.
Signal
1
R
9
+5 V (DDC power supply*1)
2
G
10
GND
3
B
11
GND
4
NC
12
DDC DATA
5
NC
13
HS
6
GND(R)
14
VS
7
GND(G)
15
DDC CLK
8
GND(B)
*1 The supply current of the DDC power supply is limited. Refer to 5.1DDC power supply max power current consumption.
YPbPr output
Connector name
Signal
Y
Y
PB
Pb
PR
Pr
CVBS output
Connector name
Signal
CVBS
Composite video
10
5
1
6
15
11
