Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
64

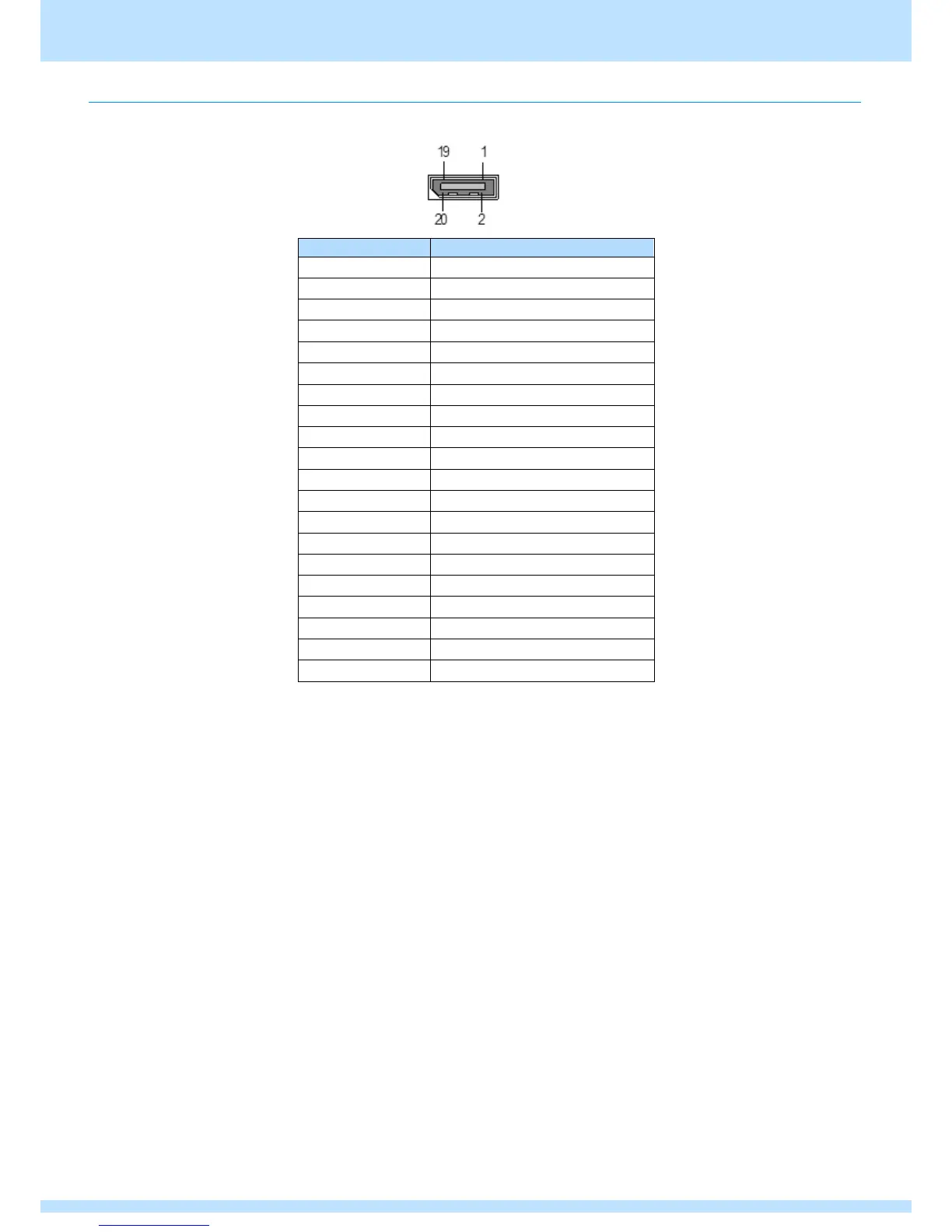

4.2.3 Connector and pin assignment
● Connector: Hosiden TCX3250-111387
Pin No.
Signal
1
MainLink Lane0(p)
2
GND
3
MainLink Lane0(n)
4
MainLink Lane1(p)
5
GND
6
MainLink Lane1(n)
7
MainLink Lane2(p)
8
GND
9
MainLink Lane2(n)
10
MainLink Lane3(p)
11
GND
12
MainLink Lane3(n)
13
GND
14
GND
15
AUX CH(p)
16
GND
17
AUX CH(n)
18
Hot Plug Detect
19
PWR_Return (unused, OPEN)
20
DP_PWR(+3.3V)
