Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
28
Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
4.1 HDMI unit functions and settings
The applicable unit is as follows.
4.1.1 HDMI unit VM-1876-M0 and VM-1876A-M0

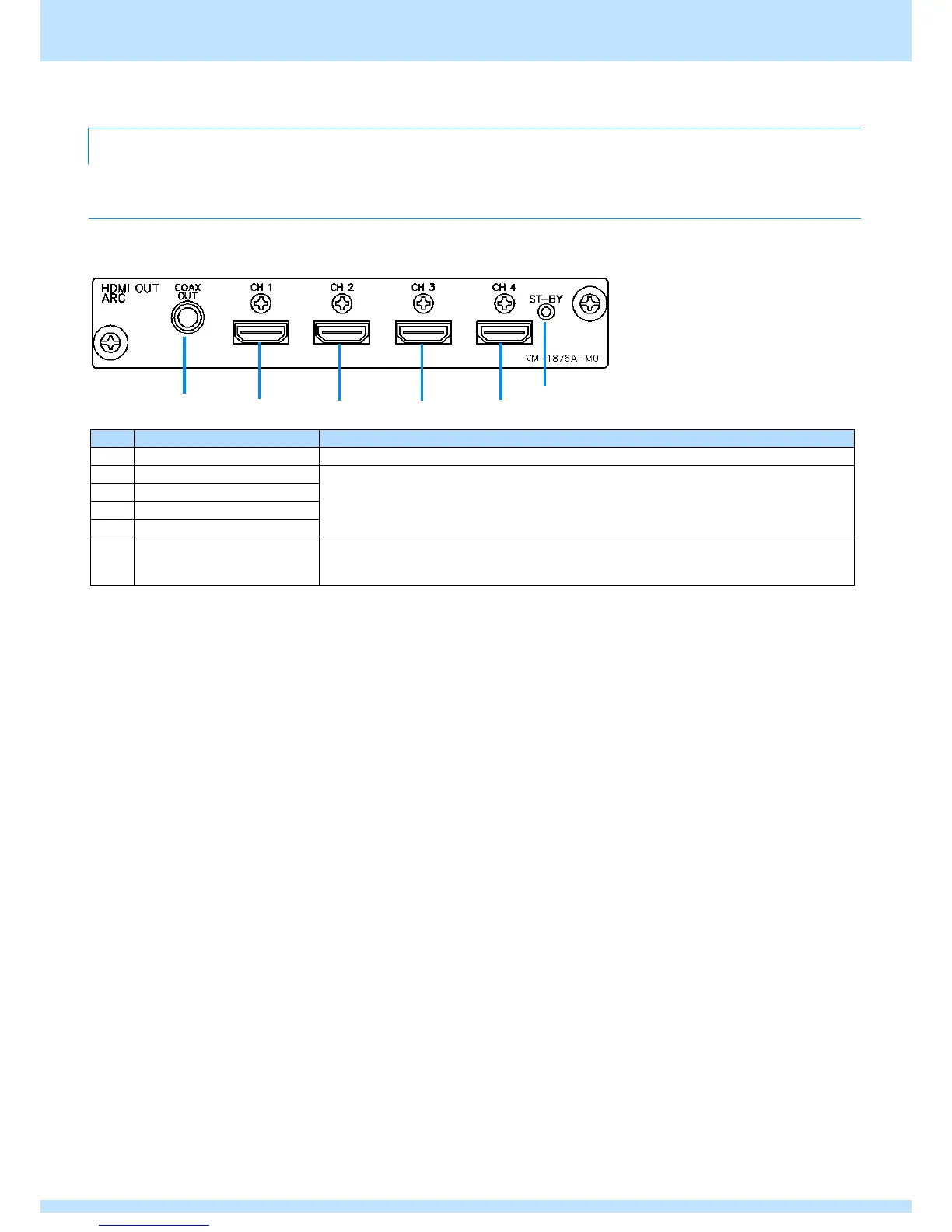

● Unit exterior diagram
No.
Name
Description
①
COAX digital audio output
Outputs audio to the selected Port when HDMI 1, 2, 3, 4 ARC signal is received.
②
HDMI 1
This is HDMI digital video/audio output terminal 1 to 4. (Supports HDCP)
③
HDMI 2
④
HDMI 3
⑤
HDMI 4
⑥
Standby LED
Lights when output preparation is complete.
On: Normal
Off: Error (module damaged, wrong slot, etc.)
①
②
③
④
⑤
⑥
