Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
97

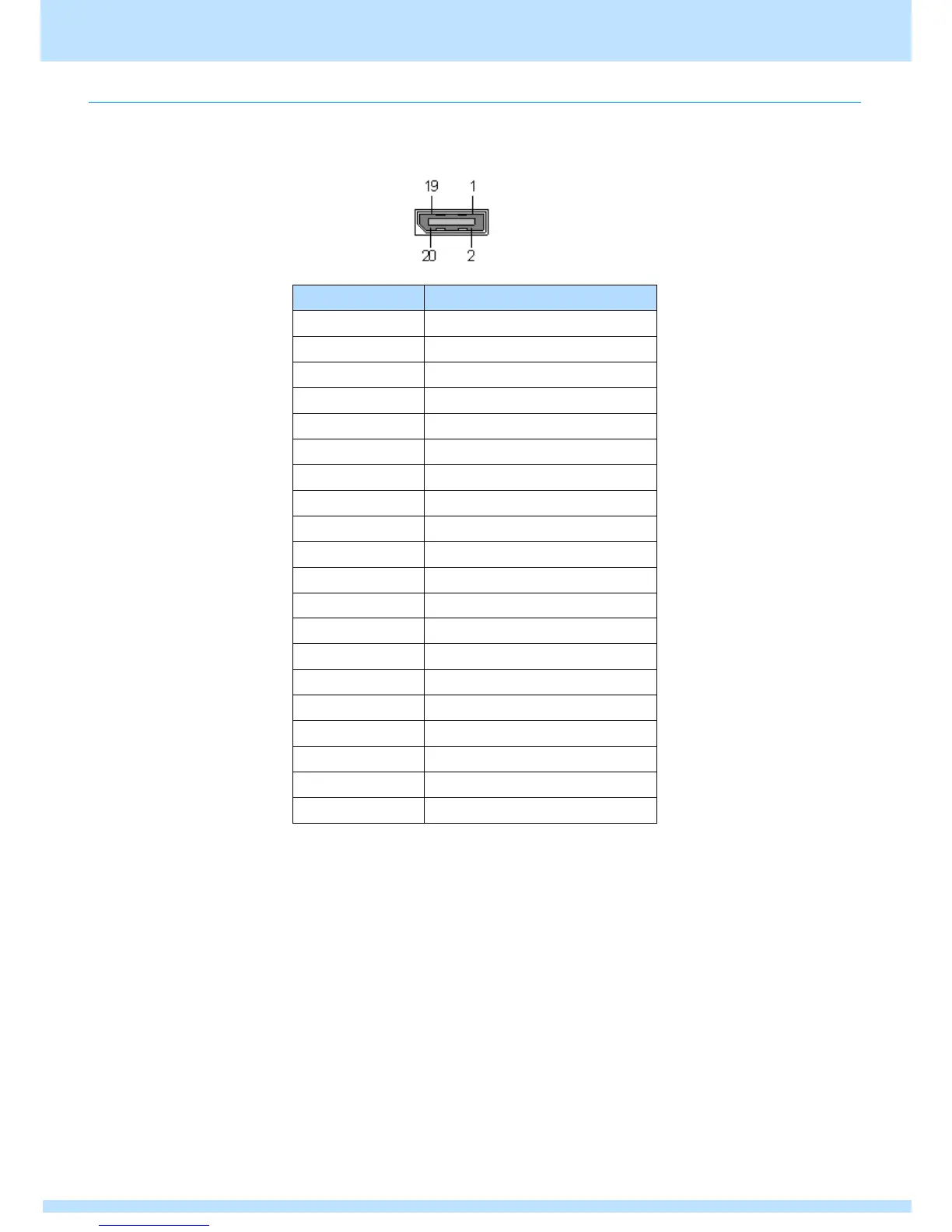

4.4.2 Connector and pin assignment
● Connector: Hosiden TCX3250-111387
Pin No.
Signal
1
TX Lane0(p)
2
GND
3
TX Lane0(n)
4
TX Lane1(p)
5
GND
6
TX Lane1(n)
7
TX Lane2(p)
8
GND
9
TX Lane2(n)
10
TX Lane3(p)
11
GND
12
TX Lane3(n)
13
GND
14
GND
15
SCL
16
GND
17
SDA
18
HTPDN
19
LOCKN
20
NC
(Connectors 1 to 4 are common.)
