Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
142
4.6.2 Overview of synchronization operation
Signals of a resolution such as 8K4K@60p that is higher than one VG unit support can be output by performing the operation to
synchronize multiple units by using a synchronization unit.

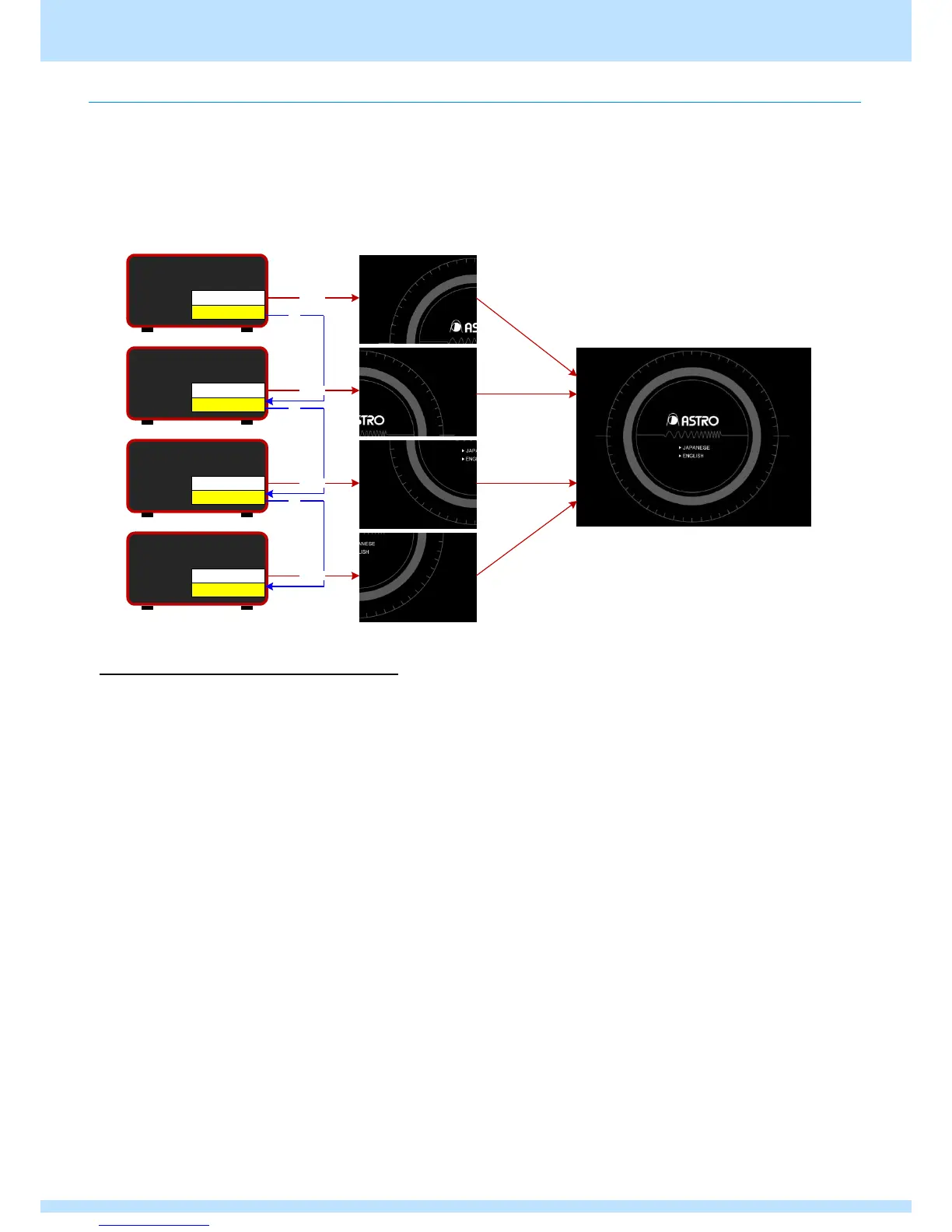

As an example, the following shows an image of the operation for synchronizing four units.
《8K4K@60p with HDMI output by linking 4 units》
* VM-1876-MX is installed in the IF IN slot of the VG unit.
VG-876
VM-1876A-M0
VM-1876-MX
IF OUT
IF IN
VG-876
VM-1876A-M0
VM-1876-MX
IF OUT
IF IN
VG-876
VM-1876A-M0
VM-1876-MX
IF OUT
IF IN
VG-876
VM-1876A-M0
VM-1876-MX
IF OUT
IF IN
REF
Master
REF
REF
HDMI×4
HDMI×4
HDMI×4
HDMI×4
8K4Kモニター
8K4K@60p
出力映像
4K2K@60p
Output video
8K4K monitor
