Astrodesign VG-879 - DisplayPort Unit Functions and Settings

Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
58
4.2 DisplayPort unit functions and settings
The applicable unit is as follows.
4.2.1 DisplayPort Unit VM-1876-M1

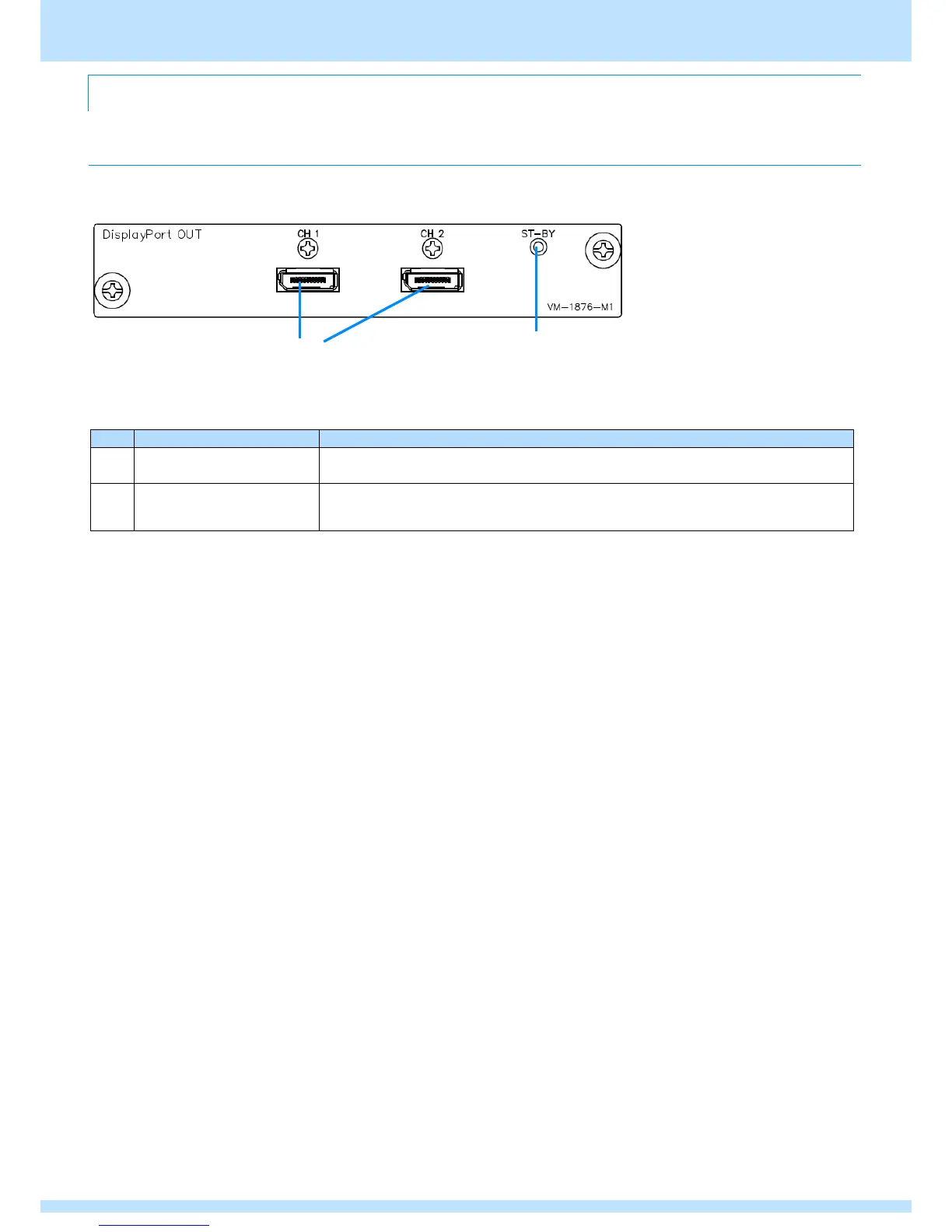

● Unit exterior diagram
No.
Name
Description
①
DisplayPort outputs
The same video can be output from two lines at the same time
Also, output with rendering split between the CH1 and CH2 set is possible.
②
Standby LED
Lights when output preparation is complete.
On: Normal
Off: Error (module damaged, wrong slot, etc.)
①
②
