Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
41
● 《Quad clock mode/
Mode0, Mode2 (for 4 quarter panes)》
This mode outputs via 4 HDMI connectors. The following
diagram shows video specifications and how data is
transferred.

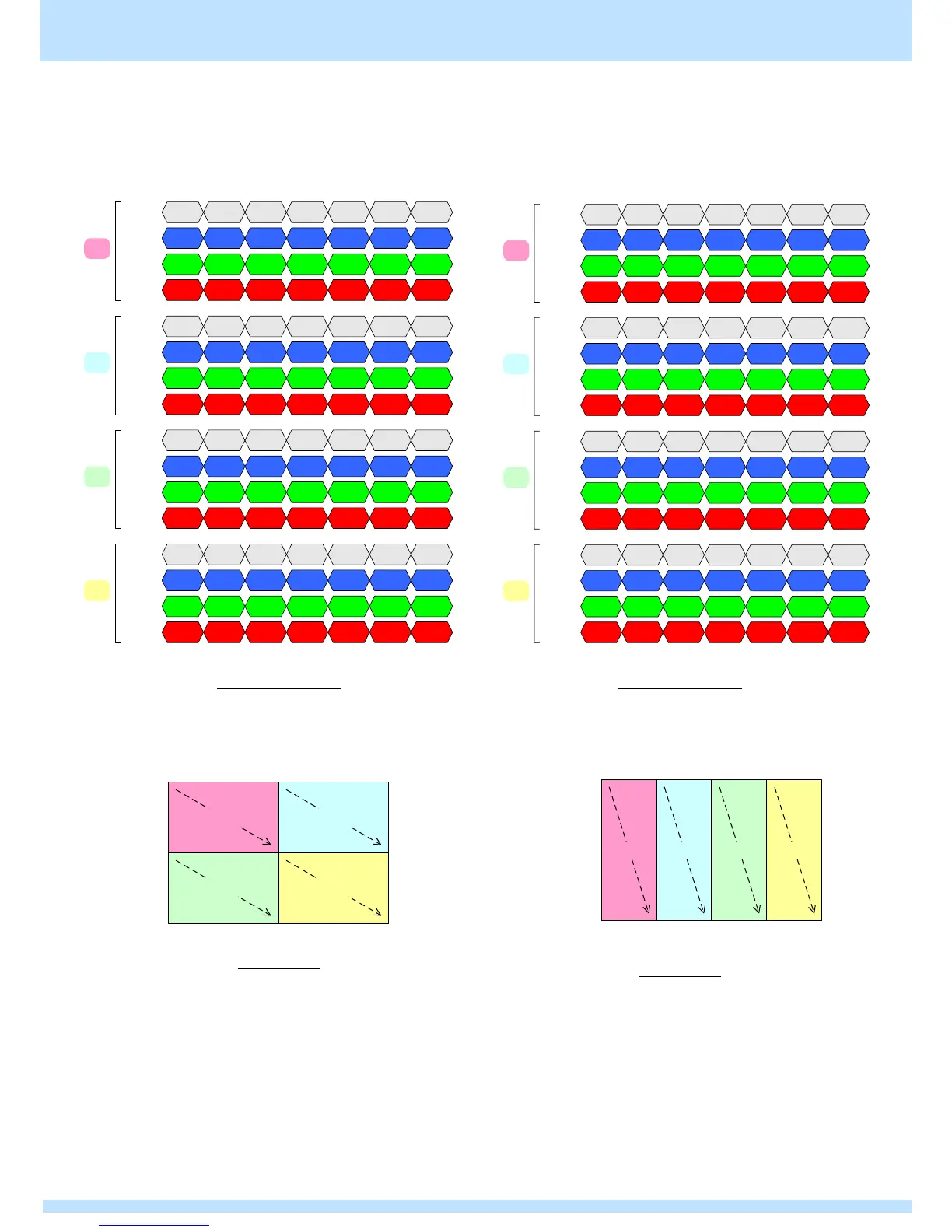

Data transfer method
Screen panes
● 《Quad clock mode/
Mode1, 3, 7, 8 (for 4 vertical panes)》
This mode outputs via 4 HDMI connectors. The following
diagram shows video specifications and how data is
transferred.
Data transfer method
Screen panes
