Chapter 4 Digital Output Settings (DIGITAL OUTPUT)
67

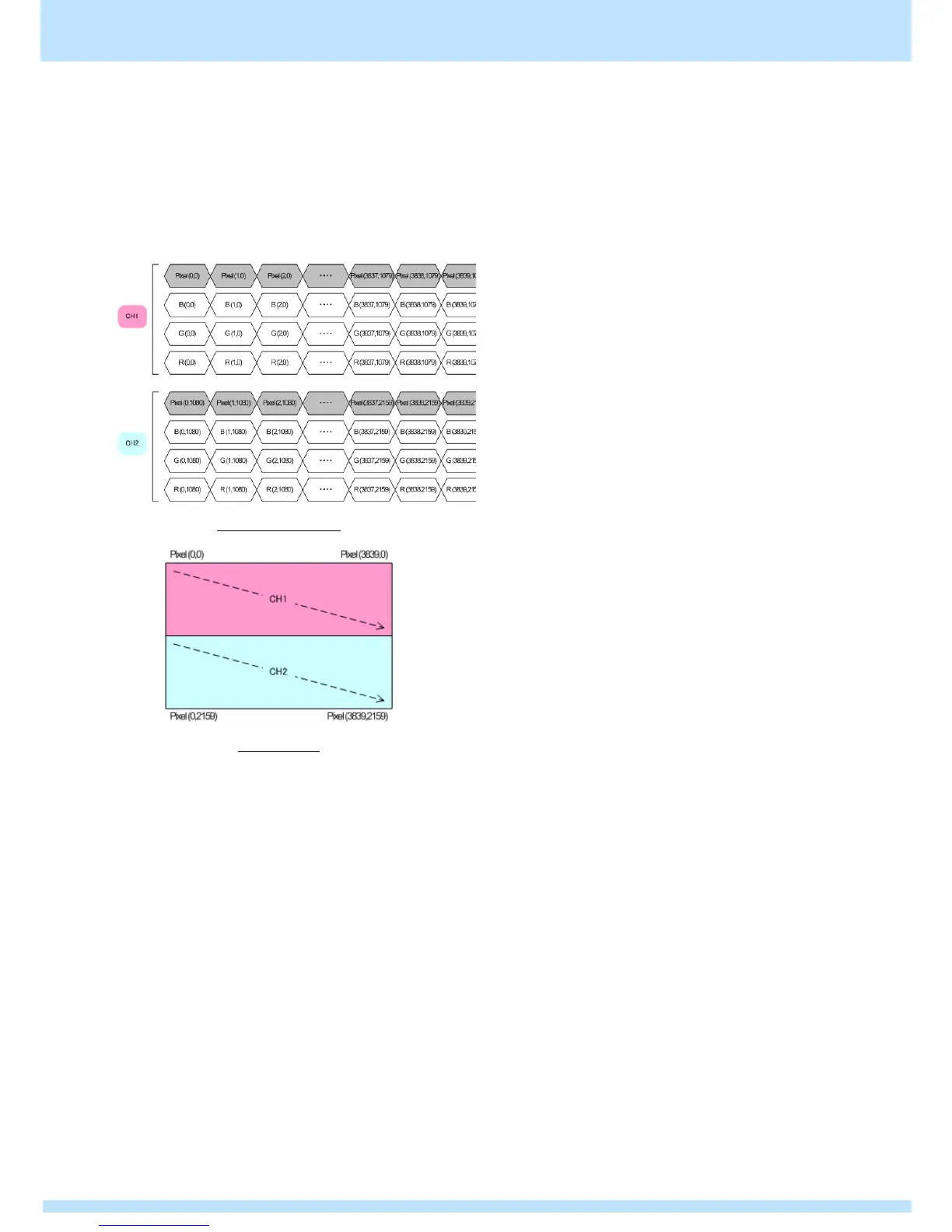

● 《Dual clock mode(DotClk Mode = 2) /
Mode0, 2 (split into top/bottom 2 panes)》
The signals of channel 1 and channel 2 are matched and
the data is output as an arbitrary timing/pattern.
2 panes horizontal output (split mode = 0, 2) * Select any
one of the values on the left
Data transfer method
Screen panes
