Chapter 2: Hardware Setup
2-34

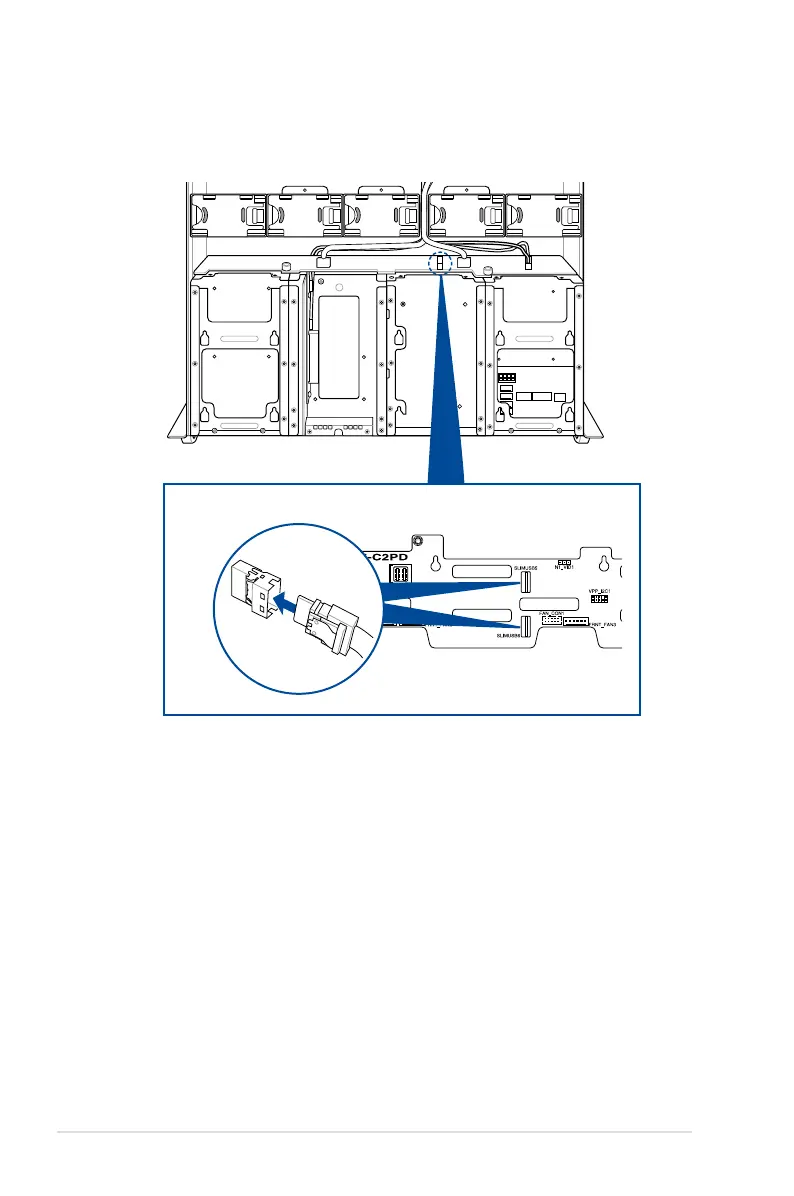

3. Connect the slimine SAS cables removed in step 2 to the SLIMPCIE5 and SLIMPCIE6
slots located on the backplane.
Connect the slimline SAS cables to
SLIMPCIE5 and SLIMPCIE6
