4-8
Chapter 4: Motherboard Information
4.3 Internal connectors

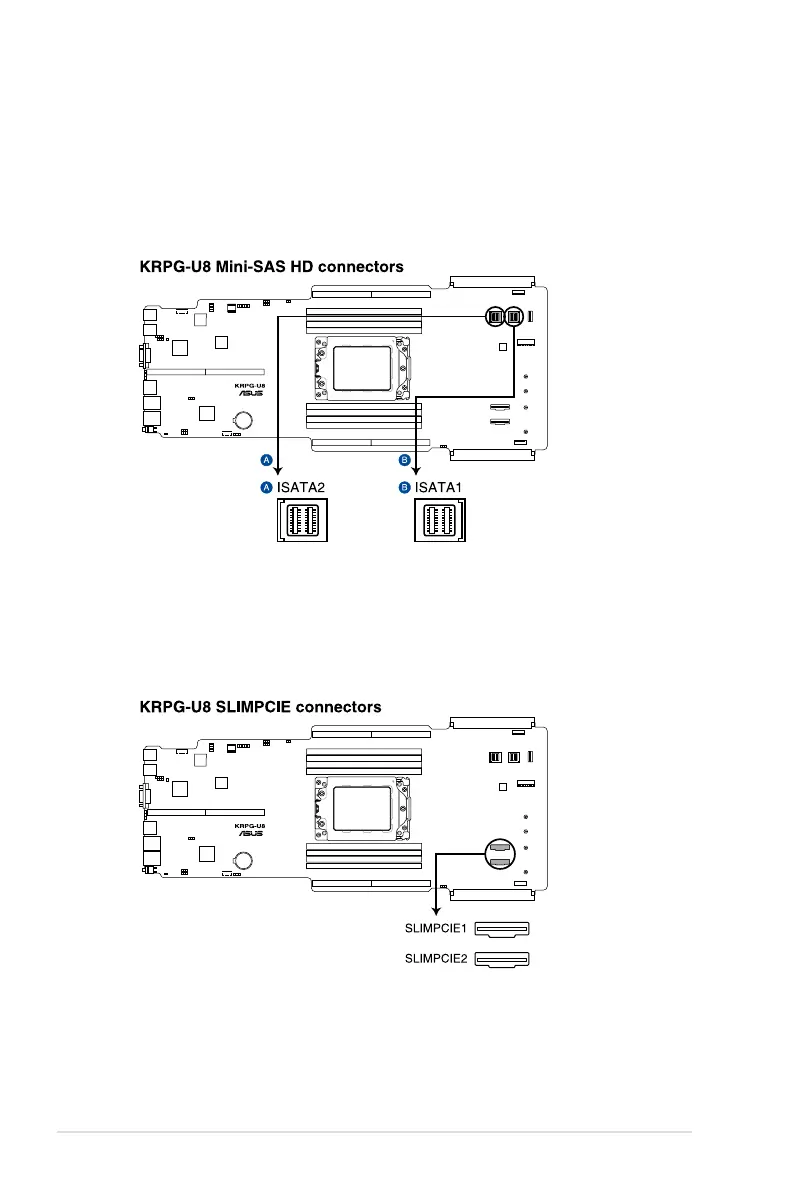

1. Mini-SAS HD connector (ISATA1-2)
This motherboard comes with mini Serial Attached SCSI (SAS) HD connectors, the
storage technology that supports Serial ATA. Each connector supports up to four
devices.
2. Slim PCIe connectors (SLIMPCIE1-2)
Connects the PCIe signal to the front riser card or NVMe port on the backplane.
