ASUS ESC4000A-E10
4-7

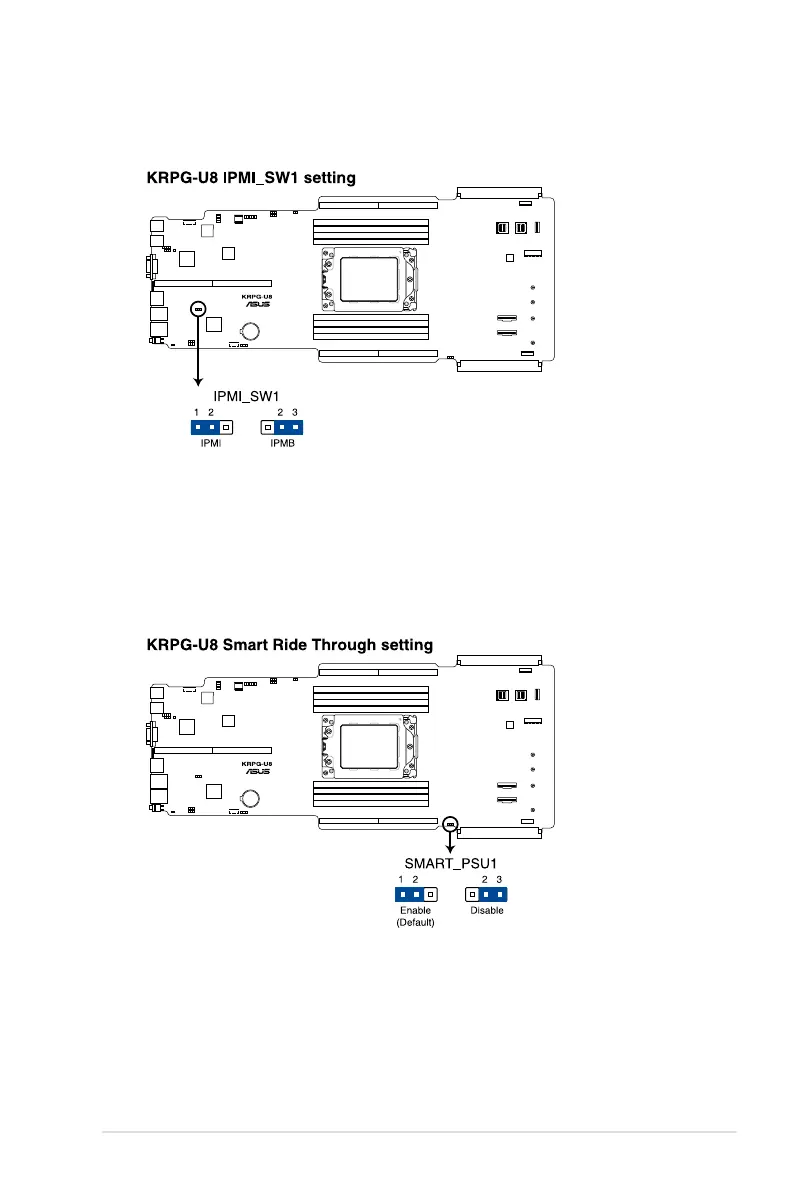

6. IPMI SW setting (3-pin IPMI_SW1)
This jumper allows you to select which protocol in the GPU sensor to function.
7. Smart Ride Through jumper (3-pin SMART_PSU1)
Set to pins 1-2 to enable the Smart Ride Through (SmaRT) feature to allow
uninterrupted operation of the system during an AC loss event.
